Heatmiser neo Stat-e - Error Codes; Re-Calibrating the Thermostat; Wiring Diagram

2827
Series
RCD
MAINS SUPPLY
L N
MATTING OR WIRE - 16 AMP MAX
REMOTE AIR PROBE
(Optional)
FLOOR PROBE
TC-EM
RT2RT1
-
N
LOAD
L
Floor
Sensor
Remote
Air Sensor
N
230VAC
Re-calibrating the Thermostat
If you need to re-calibrate the thermostat, follow these steps.
• Use the Left / Right keys to scroll to the Power Icon ............................
• Press and hold Tick to turn the display OFF ...........................................................
• Press and hold the Tick and Down keys together for 10 seconds ..................
• The current temperature will appear on the display.
• Use the Up / Down keys to congure the new temperature value ..............
• Press the Tick key to conrm the change and the display will go blank ....
• Press the Tick key once to turn the thermostat ON ............................................

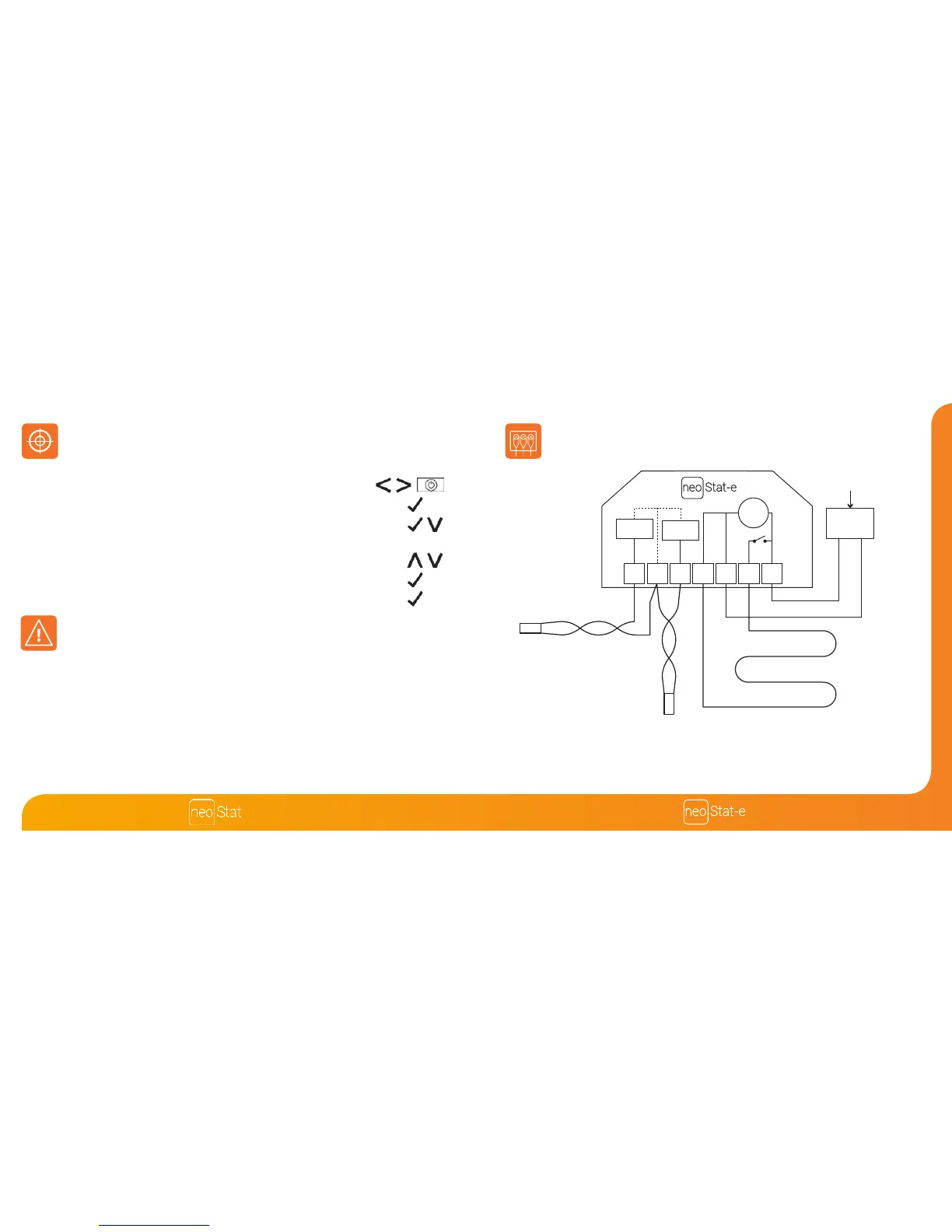

Wiring Diagram - neoStat-e
Error Codes
E0 = The internal sensor has developed a fault.
E1 = The remote FLOOR probe has not been connected.
The remote FLOOR probe has not been wired correctly.
The remote FLOOR probe is faulty.
E2 = The remote AIR probe has not been connected.
The remote AIR probe has not been wired correctly.
The remote AIR probe is faulty.
When terminated for thermostat operation the screen will display an error code if a fault
is detected.
This product must only be installed by a qualied electrician
and comply with local installation regulations.
