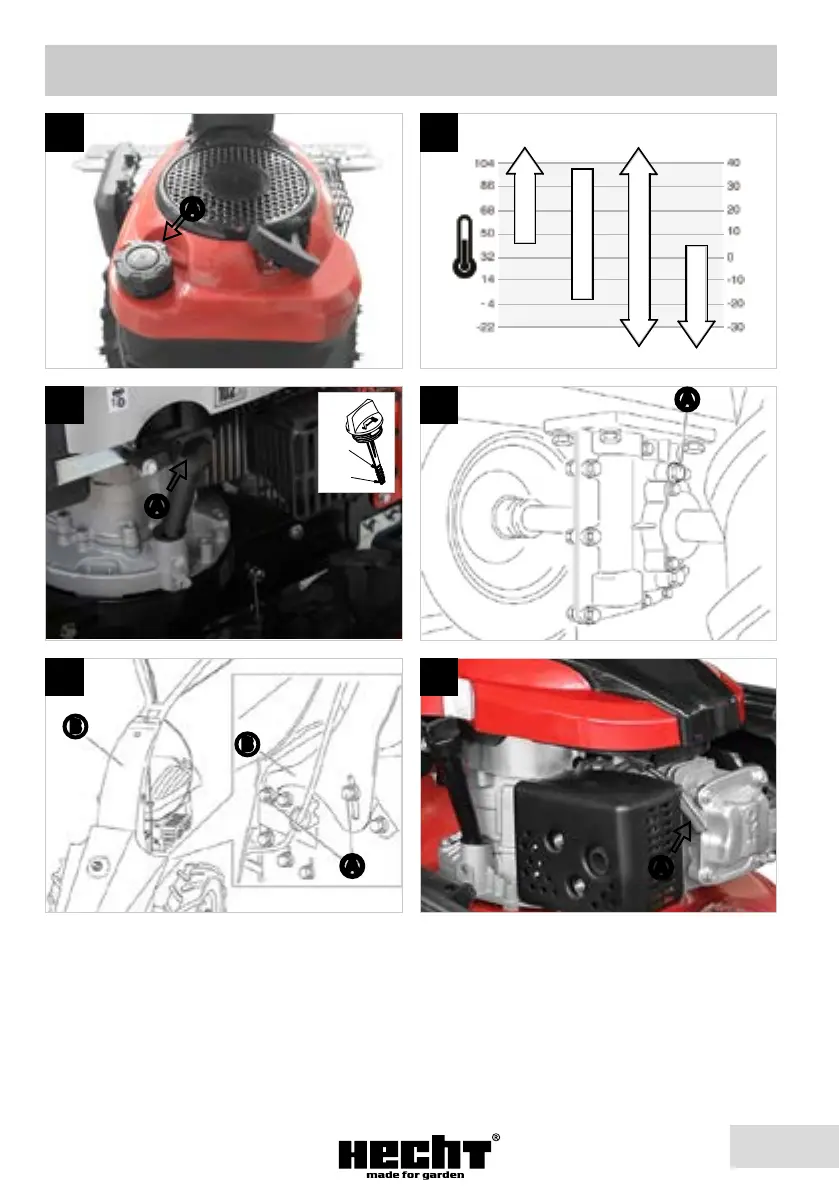

Filling with gearbox oil
CAUTION
Product damage!
The product is supplied without gearbox oil.
Make sure it is filled with gearbox oil before using for the first time.
Operating the gearbox with insufficient oil will damage the gearbox.
Contaminated gearbox oil will reduce the service life of the gearbox.
Use the specified gearbox oil.
– Switch off the motor.
– Disconnect the spark plug.
– Unscrew and remove the gearbox oil filling
plug (36) using a suitable tool.
– Carefully top up the gearbox oil. Do not
spill!
– Re-tighten the gearbox oil filling plug (36).
Operation
Check before starting!
WARNING
Risk of injury!
The product must only be put into operation if no defects are found. Ensure that
any defective parts are replaced before the product is used again.
CAUTION
Product damage!
The product is supplied without motor oil.
Make sure it is filled with motor oil before using for the first time.
The oil level must be checked and topped up refilled each time before using the
motor.
Operating the motor with insufficient oil will damage the motor.
Dirty oil or two-stroke motor oil reduces the service life of the motor.
The motor oil must be changed after the first five operating hours.
Use the specified motor oil.
CAUTION
Product damage!
The product is supplied without gearbox oil.
Make sure it is filled with gearbox oil before using for the first time.
Operating the gearbox with insufficient oil will damage the gearbox.
Contaminated gearbox oil will reduce the service life of the gearbox.
Use the specified gearbox oil.
10
a
Mounting the cutter
WARNING
Risk of injury!
Make sure that the cutting tool guard (9a) is installed on the cutter (9).
– Loosen the self-locking nut (23) with the circlip
and the washer from the screw (24) with the washer.
– Place the base plate (25) onto the cutter (9).
– Direct the sliding block (26) into the guide (27)
on the cutter (9).
– Align the cutter (9) and the base plate (25) to
one another.
– Direct the screw (24) with the washer from below
through the cutter (9) and the base plate (25).
– Screw the self-locking nut (23) with the circlip
and the washer onto the screw (24) and tighten it.
Using for the first time
Product controls
WARNING
Risk of injury!
Before performing any adjustment work, always switch the product off and remove
the spark plug connector.
Setting the steering height
– Slightly loosen the screws (19) with the circlip
and the washer on both sides of the arm housing
(4).
– Set the desired steering height.
– Tighten the screws (19) with the circlip and
washer again.
11
a
b
b
12

a
