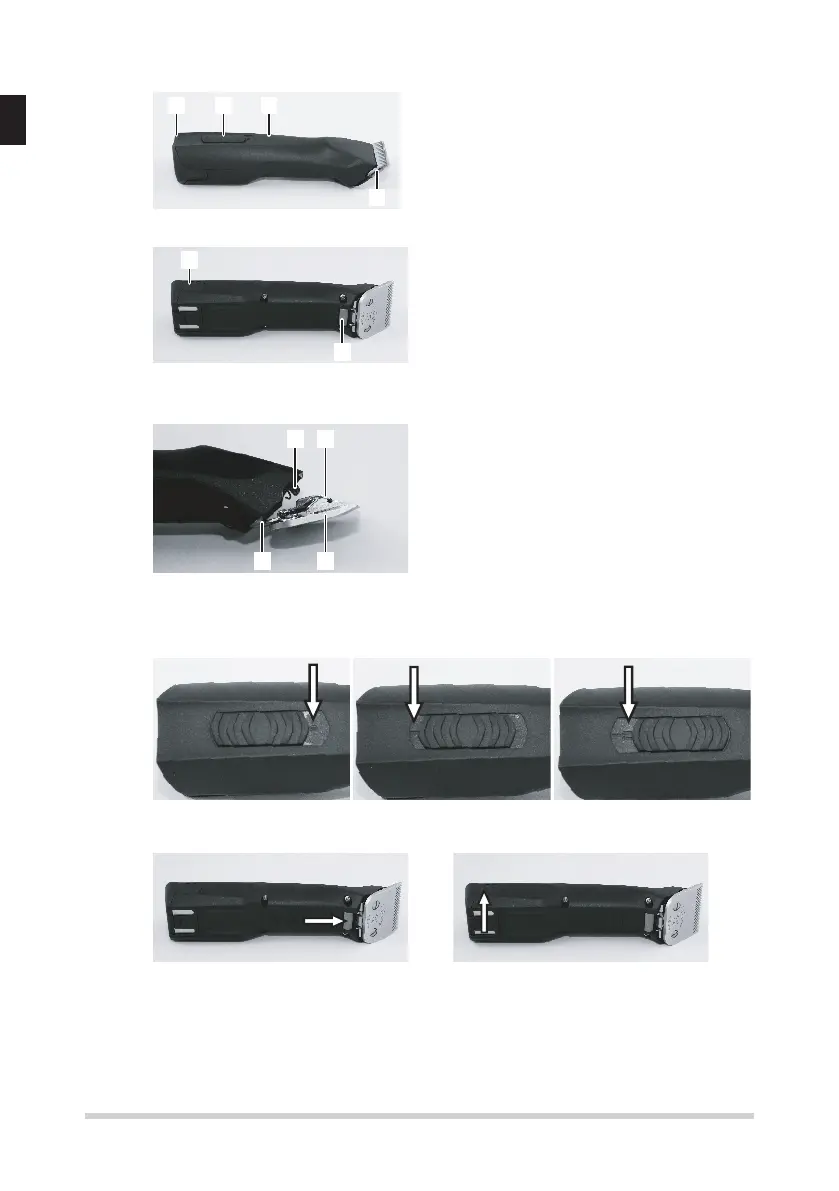

4.2 Overview
21 3
4
1 Battery
2 Switch lever
3 Clipper
4 Clipperhead
5 Interlockclipperhead
6 Interlockbattery
Fig. 1
5
6
Fig. 2
4.3 Abstract
34
1 2
Fig. 3
The clipper is designed to clip dogs,
cats, cattle and horses at two different
speed levels. Two comb-shaped blades
are the cutting tool. The bottom blade
facingtheskin(3)isstandingrmandis
xedonthebladehinge(4).Thetopbla-
de (2) is agitated crossways that one.
The top blade is moving by the help of a
turning lever (1).
4.4 Operating elements
Fig. 4 Switch
in OFF-position ("0")
Fig. 5 Switch
in ON-position (“I")
Fig. 6 Switch
in ON-position (“II")
Fig. 7 Interlockclipperhead Fig. 8 Interlockbattery
