Automation Instructions CPK • 10-2015 •106-29009
Appendix
34
9.3 Bundling clips
Bundling clips are secured to the bundle with cable ties. They enable flexible attachment of the bundle to parts such as
vehicle doors, for example.

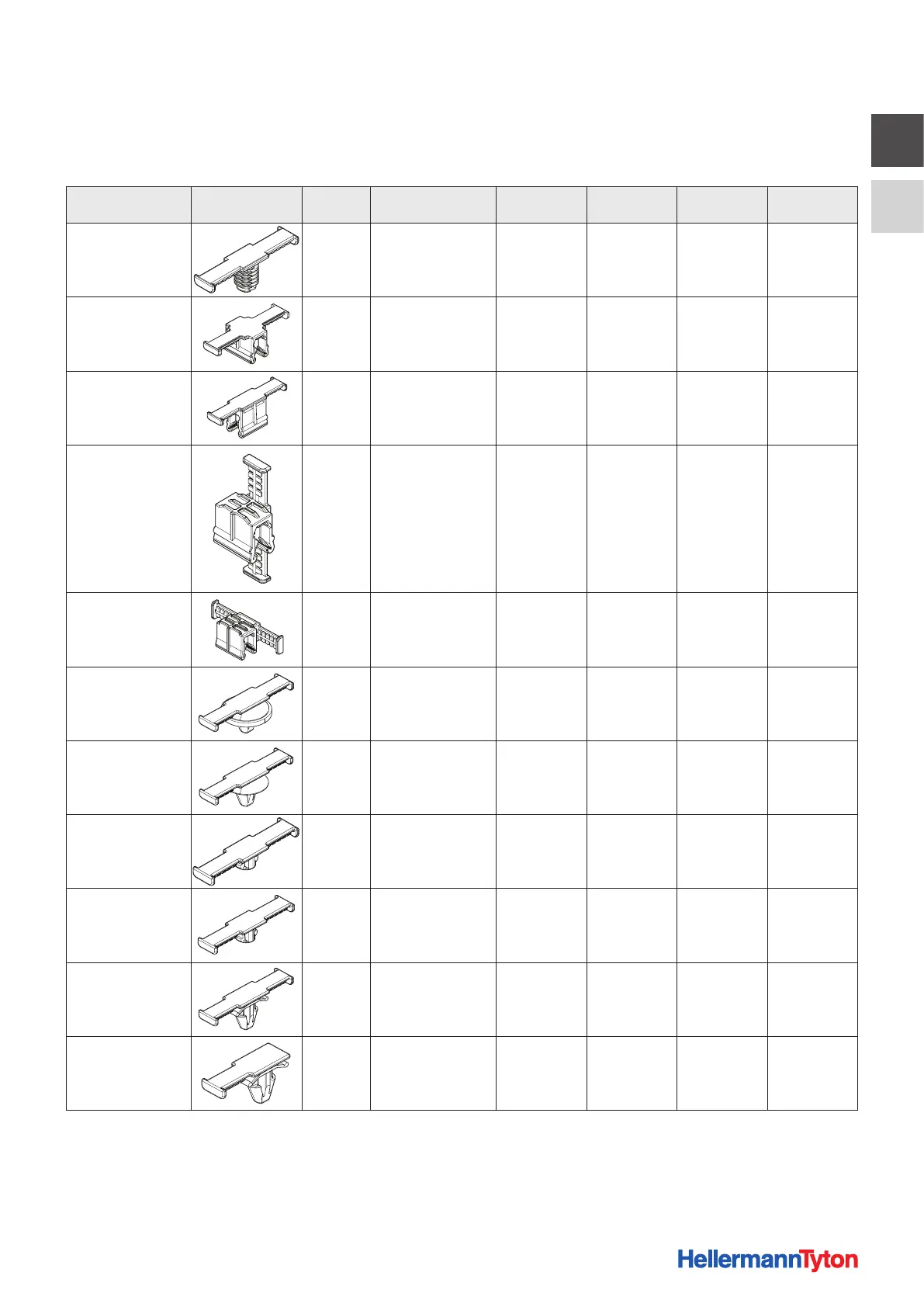

Type Drawing
Length
(L)
Dia. of fixing hole
(FH)
Sheet
thickness Material Color Item No.
ATS BC FT6LG 39 6.3 – 7.0 0.6 – 5.1 PA66HIRHS Black (BK) 102-67065
ATS BC EC35
39 – 1.5 – 4.0 PA66HIRHS Black (BK) 102-68355
ATS BC EC36
39 – 1.5 – 4.0 PA66HIRHS Black (BK) 102-68365
ATS BC EC37
39 – 1.5 – 4.0 PA66HIRHS Black (BK) 102-68375
ATS BC EC38
39 – 1.5 – 4.0 PA66 Black (BK) 102-68385
ATS BC SFT 6.5-3 MD
39 6.3 – 6.7 2.0 – 3.0 PA66HIRHS Black (BK) 102-69065
ATS BC SFT 6.5
39 6.3 – 6.7 2.3 – 3.3 PA66HIRHS Black (BK) 102-69066
ATS BC SFT 6.5 S
39 6.3 – 6.7 0.7 – 1.3 PA66HIRHS Black (BK) 102-69067
ATS BC 2K SFT 6.5
39 6.3 – 6.7 1.7 – 2.3 PA66HIRHS Black (BK) 102-69068
ATS BC SFT 6
39 6.3 – 6.7 2.3 – 3.3 PA46 Black (BK) 102-69069
ATS BC OW SFT 6
27.5 6.3 – 6.7 2.3 – 3.3 PA46 Black (BK) 102-69070
