HellermannTyton AT2000 CPK - Bench Mount Kit CPK; Overhead Suspension CPK; Robot Adapter CPK

USDE
Automation Instructions CPK • 10-2015 •106-29009
Functional description
8
See the Operating Instructions for the tool for a description
of the power pack.
Description of the connections: à„Pinout of serial interface,
power pack with control box“ on page24.

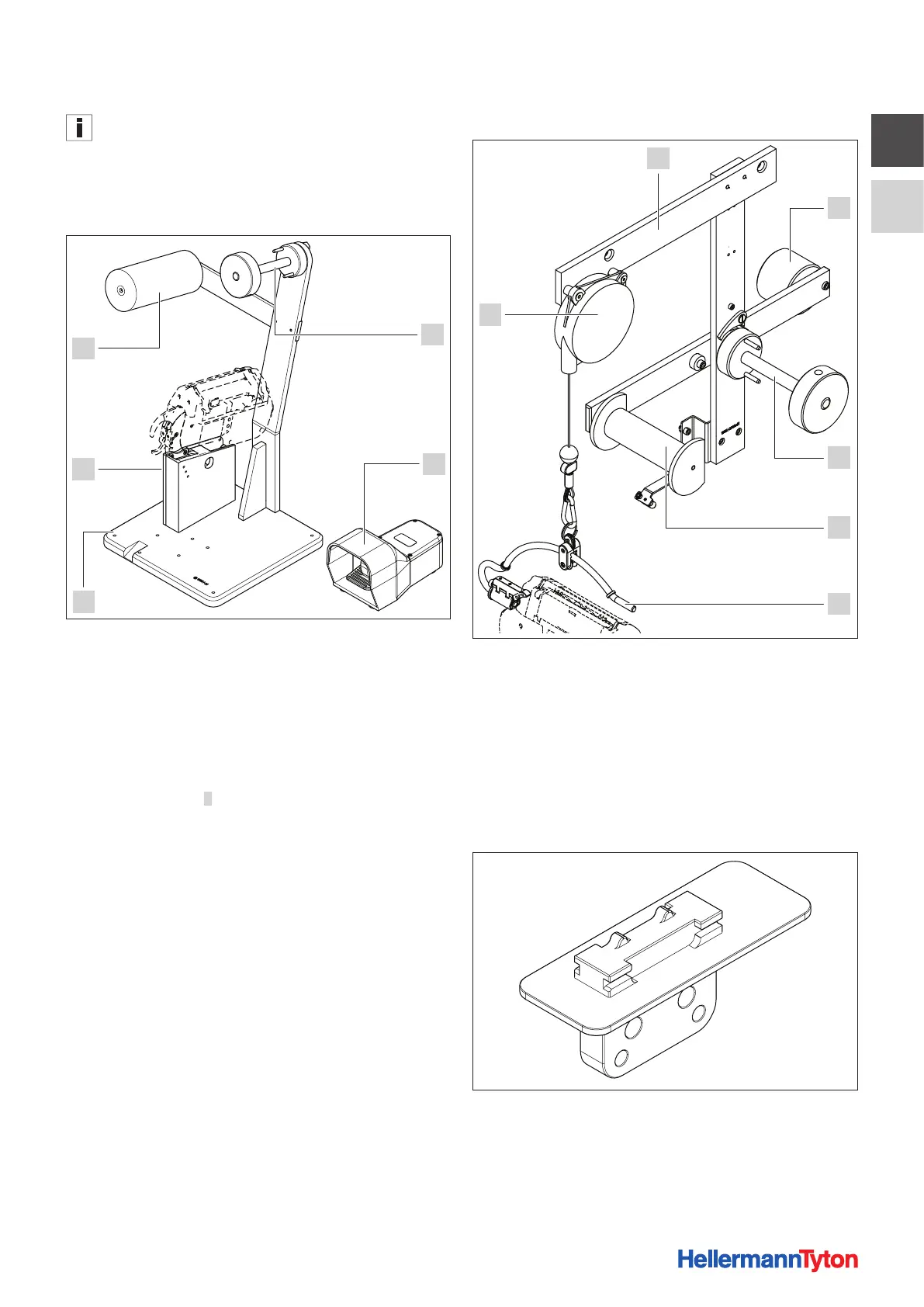

3.3 Bench mount kit CPK
3
2
1
5
4
1 BMK reel mount CPK
2 Foot-operated switch
3 BMK base plate CPK
4 BMK tool mount CPK
5 BMK relay roller
The bench mount kit CPK holds the tool in an upright
position, so the user can guide the bundle past the tool and
use the foot-operated switch to trigger tying, à„Installing
the bench mount kit CPK“ on page11.
Foot-operated switch
2 can be used together with the bench
mount kit CPK for easier tying at the tool. It connects to the
power pack with control box.
3.4 Overhead suspension CPK
6
1
2
3
4
5
1 OHS counterweight
2 OHS reel mount CPK
3 OHS relay roller
4 Suspension hanger CPK
5 Balancer
6 OHS rail runner
The overhead suspension CPK is for suspending the tool
from overhead, à„Installing the overhead suspension CPK“
on page14.
3.5 Robot adapter CPK
The robot adapter CPK is for securing the tool to automated
systems such as robots, à„Installing the robot adapter
CPK“ on page16.
