Helmer iPR456 - Appendix A; i.Series Parts

Helmer Scientic i.Series
®
and Horizon Series
™
Pass-Thru Refrigerator Operation Manual
360378/C 24

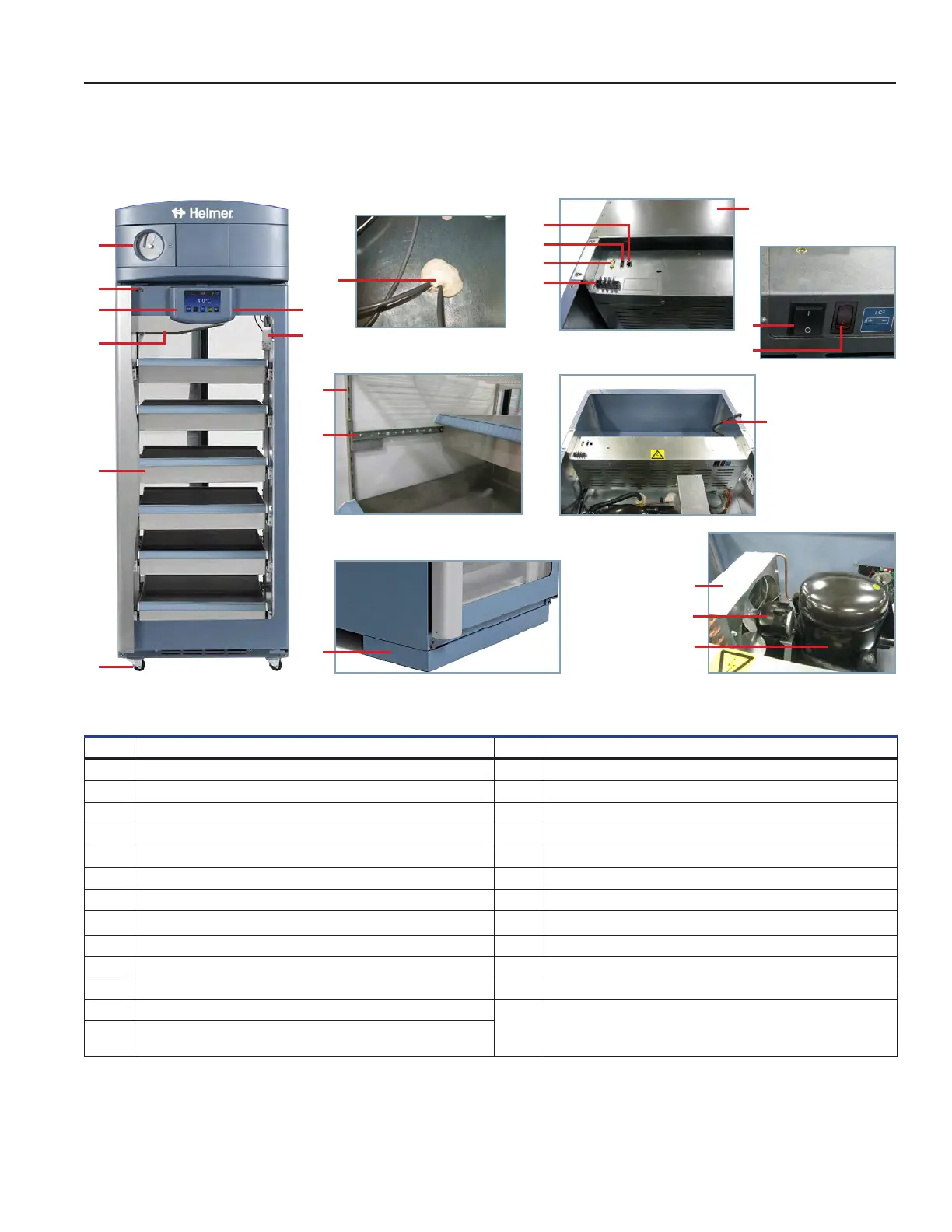

Appendix A
i.Series Parts
Table 9. i.Series Parts and Description
Letter Description Letter Description
A Chart recorder
(standard on blood bank models / optional on pharmacy models) M USB port
B Door lock N RJ-45 Ethernet port
C i.C
3
control O RS-232 COM port (optional)
D Unit cooler with fan guard P Remote alarm interface
E Drawer
(two-way) Q Cover (clean room side)
F Caster R Main power switch
G Access Port
(number and location vary by model) S Back-up battery switch
H USB T Power cord
I Primary monitor probe bottle U Condenser
J Standard for adjusting storage components V Condenser fan motor
K Drawer/basket slide W Compressor
L Skirt
(optional, installed on the clean room, or non-control side) Not
shown
Monitoring system back-up battery
Not
shown
Secondary probe bottle
A
W
V
U
S
R
Q
P
O
N
M
L
K
J
G
I
H
F
E
D
C
B
T
