Helmer Scientic i.Series
®
and Horizon Series
™
Pass-Thru Refrigerator Operation Manual
360378/C 6
2 Installation
2.1 Location
♦ Hasagroundedoutletmeetingtheelectricalrequirementslistedontheproductspecicationlabel.
♦ Is clear of direct sunlight, high temperature sources, and heating and air conditioning vents.
♦ Minimum 8“ (203 mm) above.
♦ Meetslimitsspeciedforambienttemperature(15˚Cto32˚C)andrelativehumidity.
♦ Clearance above the clean room side may be 0”.
♦ Top enclosure cannot be placed more than 11” (280 mm) from the front (clean room side) of the refrigerator.
♦ Sideenclosuresmaybeushwithbothsidesoftherefrigerator.

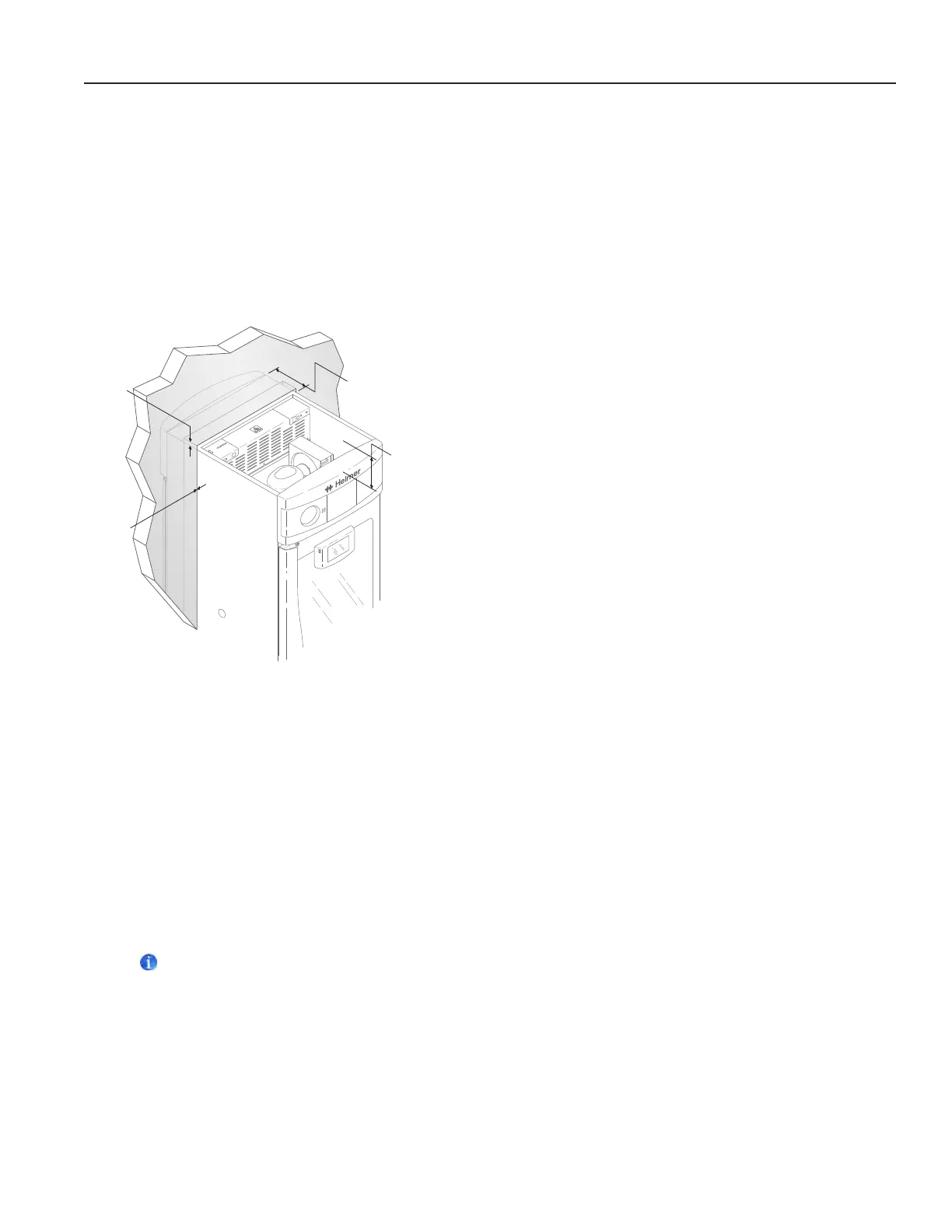

8” MINIMUM
OVERHEAD
CLEARANCE
“CLEAN ROOM”
SIDE
TOP ENCLOSURE CAN NOT
EXTEND MORE THAN 11”
FROM “CLEAN ROOM” SIDE
OF REFRIGERATOR
0” MINIMUM
CLEARANCE
(BOTH SIDES)
CONTROL /
“NON-CLEAN ROOM”
SIDE
0” MINIMUM
OVERHEAD
CLEARANCE
Clearance requirements for pass-thru refrigerator enclosure.
2.2 Placement and Leveling
CAUTIONS
• To prevent tipping, ensure the casters are unlocked, and the doors are closed before moving the refrigerator.
1. Roll refrigerator into place and lock casters.
2. Ensure refrigerator is level.
2.3 Temperature Probes
Probe bottle(s) along with a container of glycerin have been provided with this unit. The glycerin is used to create a solution which
simulatestheproductstoredintherefrigerator.Theproductsimulationsolutiontemperaturereectstheproduct’stemperature
during normal operation.
Notes
• Temperature probes are fragile; handle with care.
• Number and location of probes varies by model.
• Remote probes may also be introduced through the existing top port.
