Helmer iPR456 - Appendix B; Horizon Series Parts

Helmer Scientic i.Series
®
and Horizon Series
™
Pass-Thru Refrigerator Operation Manual
360378/C 25
Appendix B
Horizon Series Parts

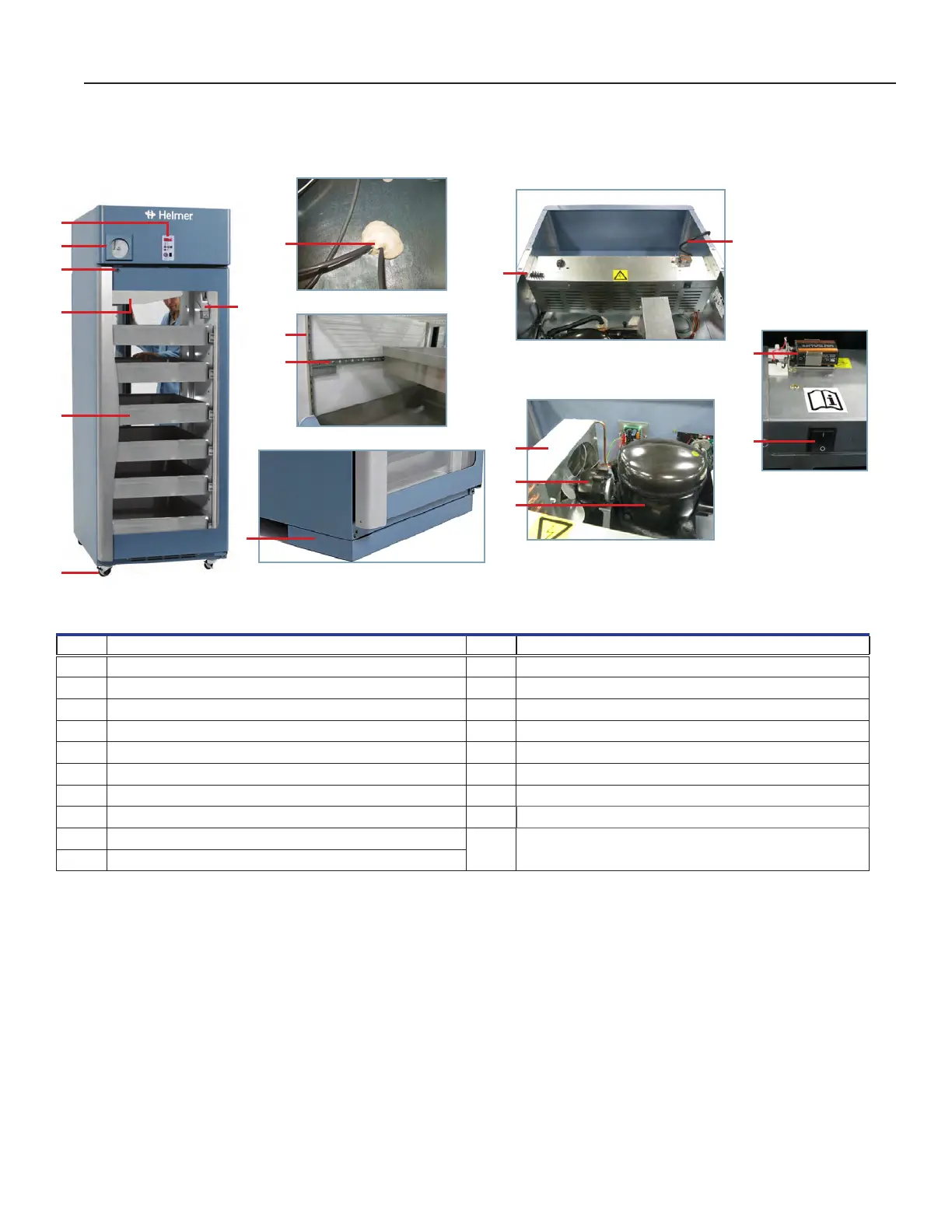

Table 10. Horizon Series Parts and Description
Letter Description Letter Description
A Horizon temperature monitor and control K Skirt
(optional, installed on the clean room, or non-control side)
B Chart recorder (standard on blood bank models / optional on pharmacy models) L Remote alarm interface
C Door lock M Condenser
D Unit cooler with fan guard N Condenser fan and motor
E Drawer
(two-way) O Compressor
F Caster P Power cord
G Access Port
(number and location vary by model) Q Monitoring system back-up battery
H Primary probe bottle R Main power switch
I Standard for adjusting storage components Not
shown
Cover
(clean room side)
J Drawer/basket slide
END OF MANUAL
R
Q
P
O
N
M
L
J
I
G
K
H
F
E
D
C
B
A
