2: Getting Started
Connect Cables To Battery -
1. Lo cate the
Auxiliary Power
cable in the
eDriveTC package.
It has a 2-pin
round connector
on one end and a
pair of ring
terminals on the
other.
2. Locate the short
CAN/Battery cable.
It has a 2-pin flat connector on one end and a pair of ring terminals
on the other.

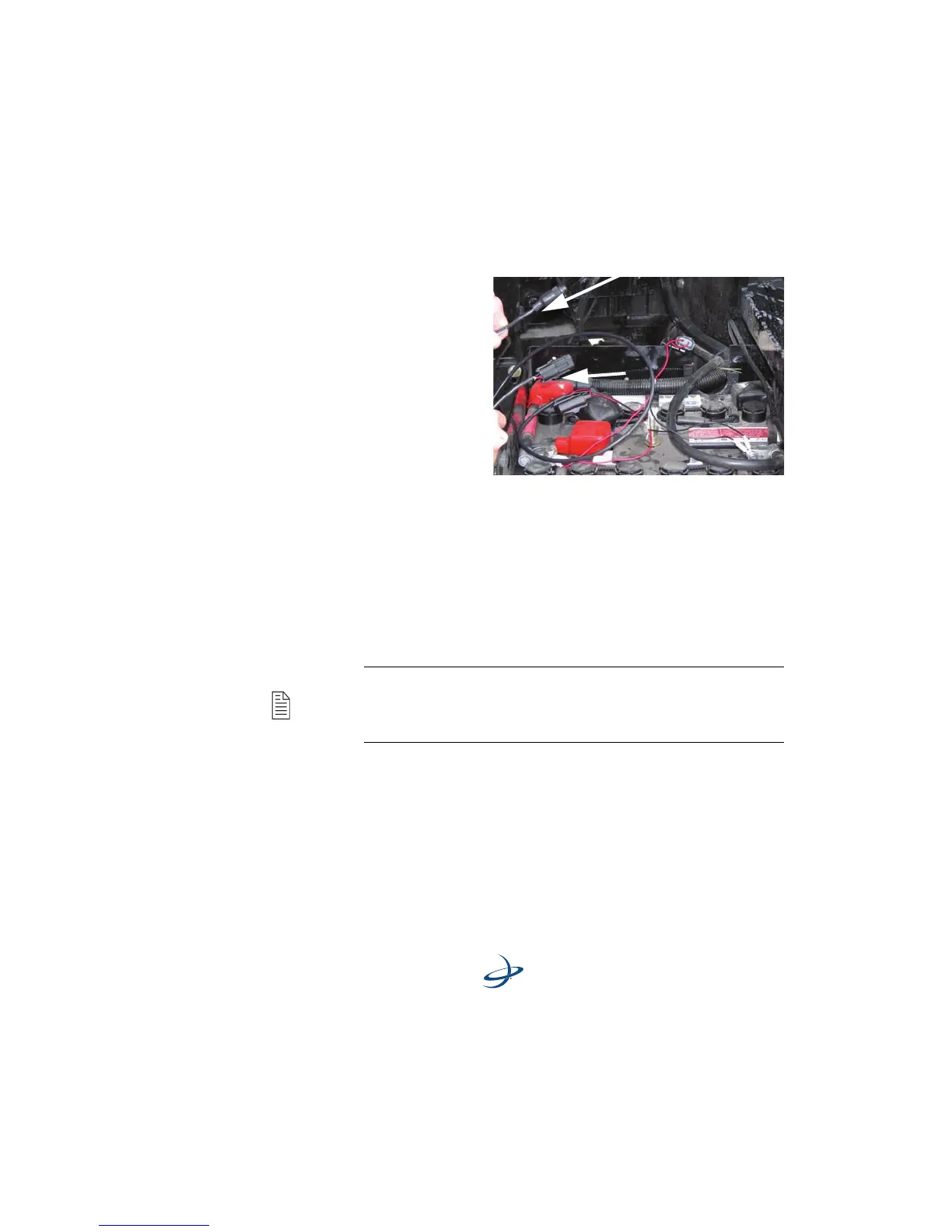

3. Connect the ring terminal ends of both cables directly to the
battery. The red wire goes to the positive terminal, and the black
wire goes to the negative.
4. Route both cables into the cab, securing with tie straps. Avoid
sharp edges and pinch points which could damage the cables and
cause a short circuit.
Note: Outback electronic components are designed for 12 volt
negative ground automotive systems. Make certain there are good
solid connections to 12 volts and ground. Connect the red wire to
positive(+) and the black wire to negative(-) or ground.
Auxiliary Power Cable
