Hendrickson TIREMAAX PRO - Tire Hose Installation Considerations; Tire Hose Installation Sample; Proper Clocking of Hubcap and Wheels

22
T51002 E
InstallatIon, servIce and troubleshootIng Procedures
Not OK, extends beyond hubcap and rim OK

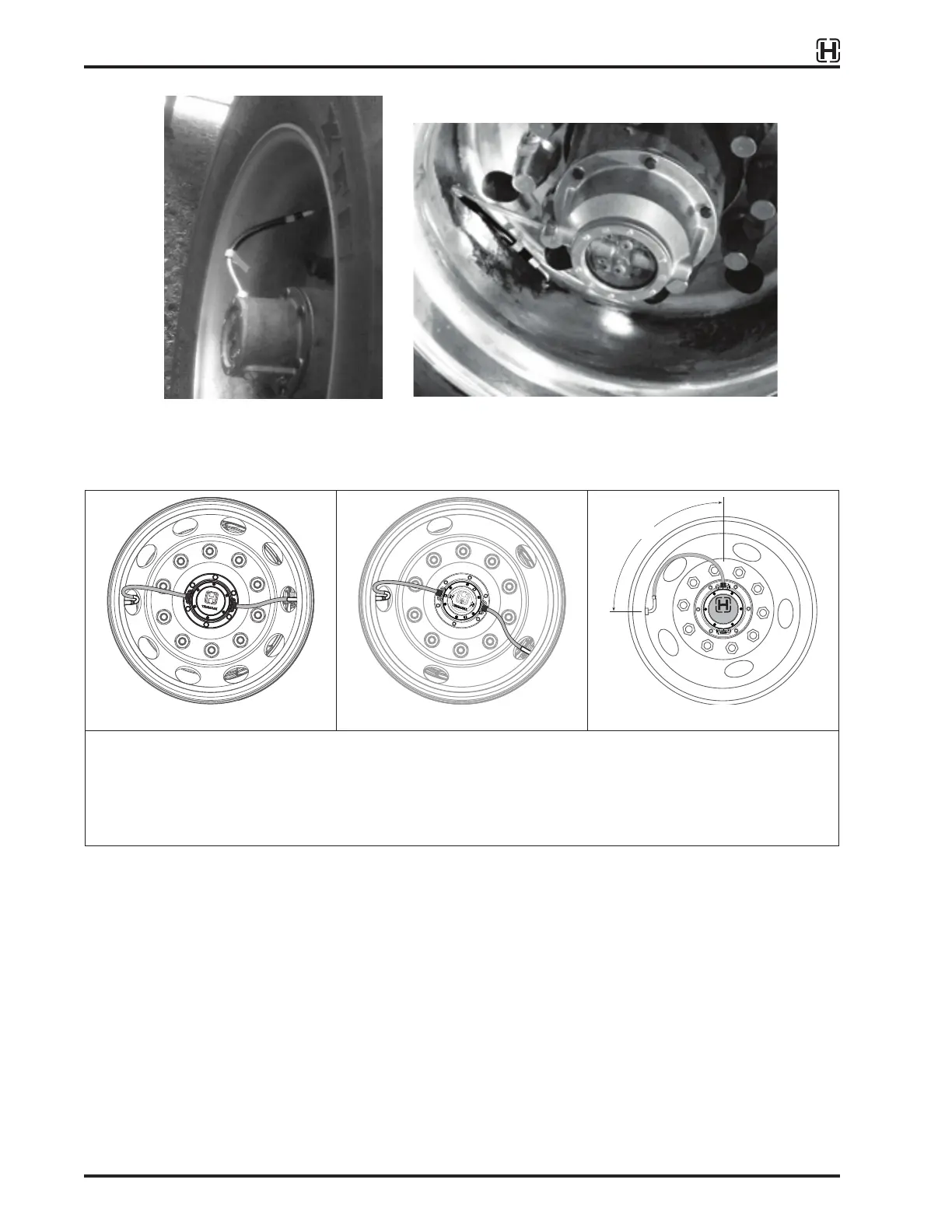

Figure 21:
Tire hose installation sample
A
B
TIREMAAX
PRO
C
NOTE: When the wheel is installed, verify:
• Tire hose is not stretched so tightly a strain is introduced at either the valve stem or hubcap.
• Make sure the tire hose is not so loose it contacts the wheel.
• Check to ensure no portion of the tire hose extends out past the wheel.
Figure 22: Properly clocking hubcap and wheels to prevent tire hose damage during operation
<90°
