DECAL LOCATION
Various decals, Table 5 are provided with TIREMAAX
®
systems. These decals include important information
relative to TIREMAAX operation and function. They
must not be removed after installation. If included with
the literature packet and not already installed on the
trailer, place decals using the below figures and table.
T50018 Rev A 09-14 ECN 23288 ©2014 Hendrickson USA, L.L.C. All Rights Reserved Printed in the Unites States of America
www.hendrickson-intl.com 866-RIDEAIR (743-3247)
®
Tire hose
Tire pressure gage
1. Disconnect tire hose at hubcap.
2. Use a conventional gage to measure tire pressure at hose end as shown on right.
3. Align hose with hubcap port and tighten nut. Ensure nut is snug.
Refer to Hendrickson publication T51002
TIREMAAX Installation, Service and
Troubleshooting Procedures for complete system details.
1. Set trailer park brake.
2. Locate TIREMAAX control, as
shown on far right.
3. Turn supply valve to closed
position, as shown on right.
TO MANUALLY CHECK TIRE PRESSURE
TO DISABLE SYSTEM
Closed
= Possible Locations
www.hendrickson-intl.com
T50014 Rev B 09-14 ECN 23288 ©2014 Hendrickson USA, L.L.C. All Rights Reserved Printed in United States of America
Trailer Commercial Vehicle Systems
2070 Industrial Place SE
Canton, OH 44707-2641 USA
866.RIDEAIR (743.3247)
330.489.0045
FAX 800.696.4416
Hendrickson Canada
250 Chrysler Drive, Unit #3
Brampton, ON Canada L6S 6B6
905.789.1030
FAX 905.789.1033
TIREMAAX
®
TIRE INFLATION SYSTEM
This unit is equipped with the TIREMAAX
®
tire inflation system.
If the lamp remains on continuously for more
than 10 minutes, one or more tires may be low
or the system requires service.
In the event of a substantial system leak, set the trailer
park brakes, then close controller supply valve.
For complete service details, refer to Hendrickson publication
T51002
TIREMAAX Installation, Service and Troubleshooting Procedures
,
or call the Hendrickson Technical Services Department in the
United States and Canada at 866-RIDEAIR (743-3247).

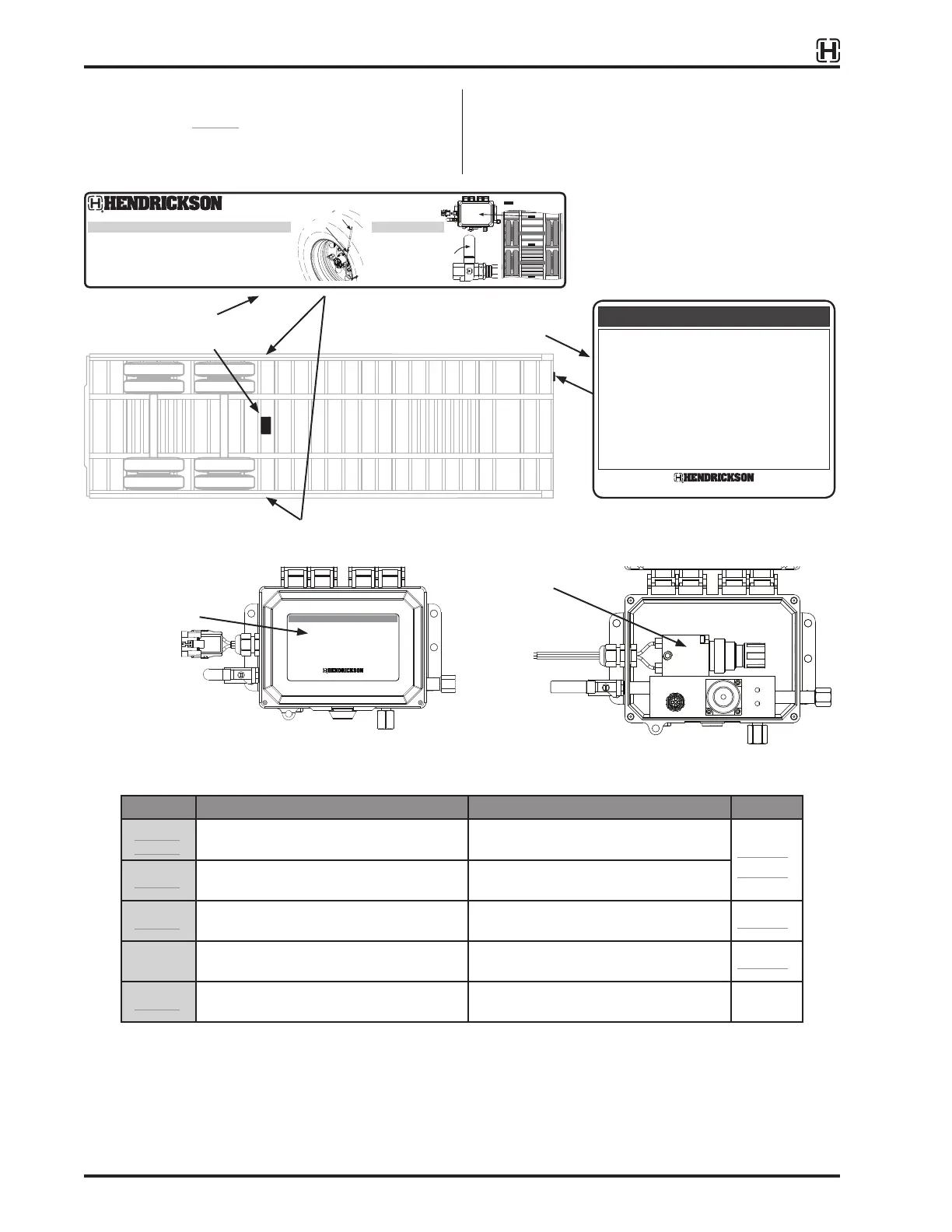

Figure 43:
Trailer decal locations
TIREMAAX
®
TIRE INFLATION SYSTEM
www.hendrickson-intl.com
T50007 Rev A 11-14 ECN 23615 Printed in the United States of America ©2014 Hendrickson USA, L.L.C. (U.S. Rights) Hendrickson Intl Corp. (Rights Outside U.S.) All Rights Reserved
Trailer Commercial Vehicle Systems
2070 Industrial Place SE
Canton, OH 44707-2641 USA
866.RIDEAIR (743.3247)
330.489.0045
FAX 800.696.4416
Trailer Commercial Vehicle Systems
250 Chrysler Drive, Unit #3
Brampton, ON Canada L6S 6B6
905.789.1030
FAX 905.789.1033
This TIREMAAX
®
controller assembly has been factory preset to a cold inflation
pressure of:
100 psi
If the indicator lamp remains on continuously for more than 10 minutes, one or more
tires may be low or the system requires service.
In the event of a system leak, set the trailer park brake, then close the controller
supply valve.
NOTE: If equipped with TIREMAAX PRO, while trailer park brakes are set, lamp operation is disabled
and no delivery pressure is present.
For complete service details, refer to Hendrickson publication T51002, TIREMAAX
Installation, Service and
Troubleshooting Procedures
. Or call the Hendrickson Technical Services Department in the United States
and Canada at 866-RIDEAIR (743-3247).
T50013 08-11 ECN 20134 Copyright
®
2011 Printed in the USA
REGULATOR FACTORY SET. REFER TO
T51002 OR CONTACT HENDRICKSON
FOR ADJUSTMENT INFORMATION.
Figure 44:
Controller decal locations (Installed by Hendrickson)
DECAL # DESCRIPTION LOCATION FIGURE
T50003 -
T50011
Target PSI information.
On the outside surface of the controller cover.
Normally pre-applied by Hendrickson.
Figure 43
Figure 44
T50013
Regulator adjustment knob warning.
On the inside surface of the controller.
Normally pre-applied by Hendrickson.
T50014
Should the lamp remain on, this decal,
includes instructions and contact information.
Depending on trailer type, locate near the
indicator lamp.
Figure 43
T50018
Manually check tire pressure
Depending upon trailer type, locate on the
trailer rail opposite the controller box.
Figure 43
T53002
Manual tire PSI check instructions.
Card to be included with trailer and made
available for driver/operator.
Table 5:
Decal locations
TIREMAAX® Tire Check
T50018
Indicator status decal
T50014
Controller Assembly
Target PSI
information
T500XX
Regulator
adjustment
warning
T50013
