Hendrickson TIREMAAX PRO - Setting TIREMAAX PRO Target Pressure; Required Tools and Resources for PRO Settings

50
T51002 E
InstallatIon, servIce and troubleshootIng Procedures
Supply valve
(shown open)
Petcock valve
(if included)
Electrical
connector
Regulator cap
Pressure Relief
Module (PRM)
Delivery
port
Pressure Relief Set Screw
Emergency supply line
Delivery dump
ports (2)
Test port with vent
installed in store
position

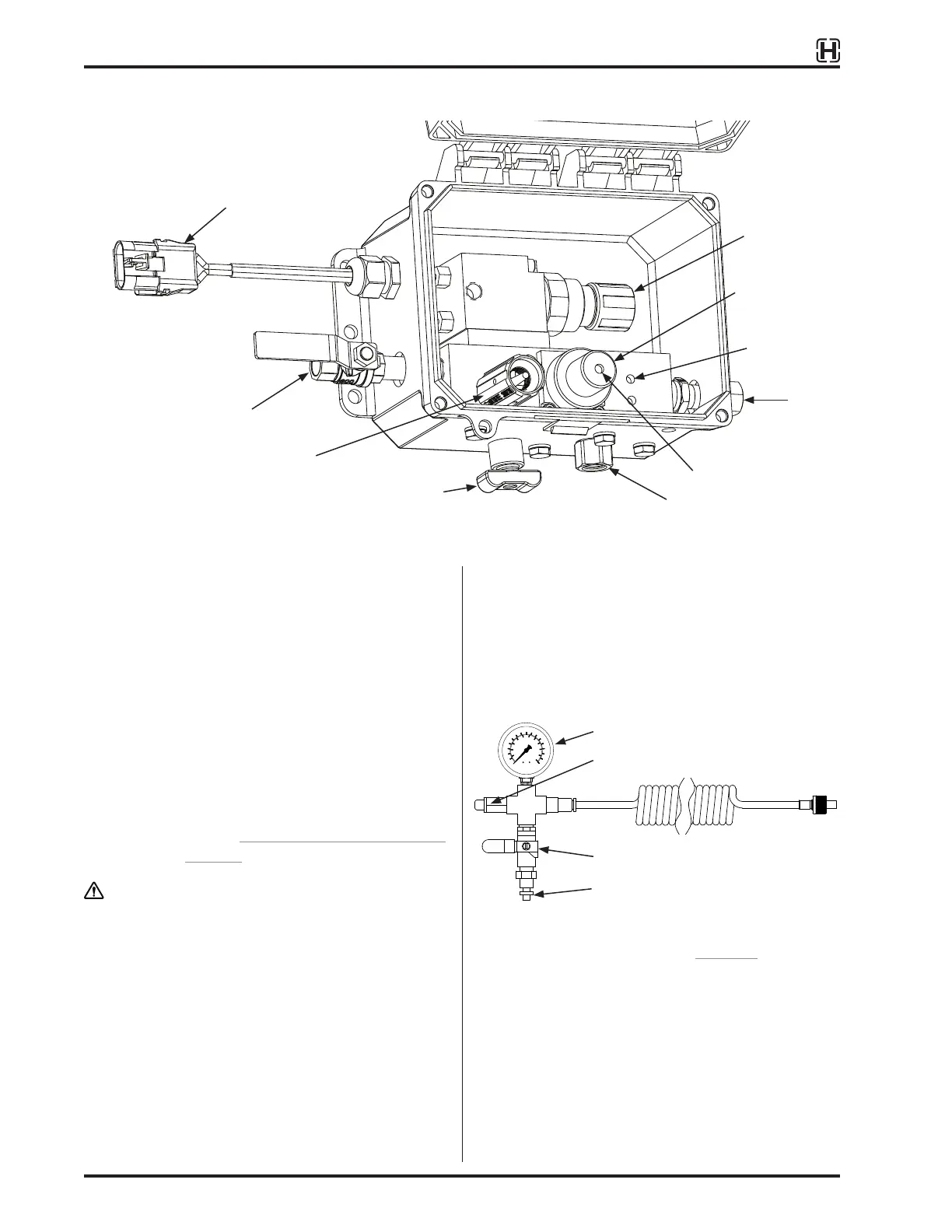

Figure 52: Setting TIREMAAX
®
PRO target and deflation pressure adjustment
SETTING TIREMAAX
®
PRO TARGET
PRESSURE
The TIREMAAX PRO controller is pre-set at the factory,
therefore additional setup is normally not required. If
a change to the inflation or deflation pressure settings
is required, follow these instructions.
NOTE: The following procedures assume the trailer
is not connected to a truck and the system
integrity is good.
IMPORTANT: The system must be free of air leaks
prior to performing these procedures.
Refer to CHECKING FOR AIR LEAKS on
page 44.
WARNING: Emergency air supply must be
available at the Emergency supply
port on the controller to enable
TIREMAAX PRO operation. Supplying
air at the emergency gladhand will
also release trailer brakes.
REQUIRED TOOLS AND RESOURCES
The following tools and resources are required to
adjust TIREMAAX PRO controller settings.
• Clean, dry shop air capable of supplying at least
15 psi above inflation pressure listed on controller
decal.
• Tire pressure gauge.
9
2
10
1
bar
psi
0
100xkPa
11
0
20
140
160
100
6
80
8
7
60
5
3
4
40
120
Figure 53: TIREMAAX PRO target gauge VS-32331
• TIREMAAX PRO target gauge (Figure 53) or
equivalent.
NOTE: The target gauge might not display an
accurate delivery pressure while emergency
brakes are disengaged. To isolate the delivery
lines from the air supply, set the emergency
brakes before reading the gauge.
•
1
/
8
inch Allen wrench.
Pressure relief button
Shop air supply
Shop supply valve (closed)
Pressure gauge
