Please note that the Cue/Mix knob is a software function only (and not a hardware
function). This means that when you are using the VirtualDJ software, the knob functions as
described above; while if you are not using DJing software, this knob will have no function –
unless you map a “Cue to Mix” function onto it.

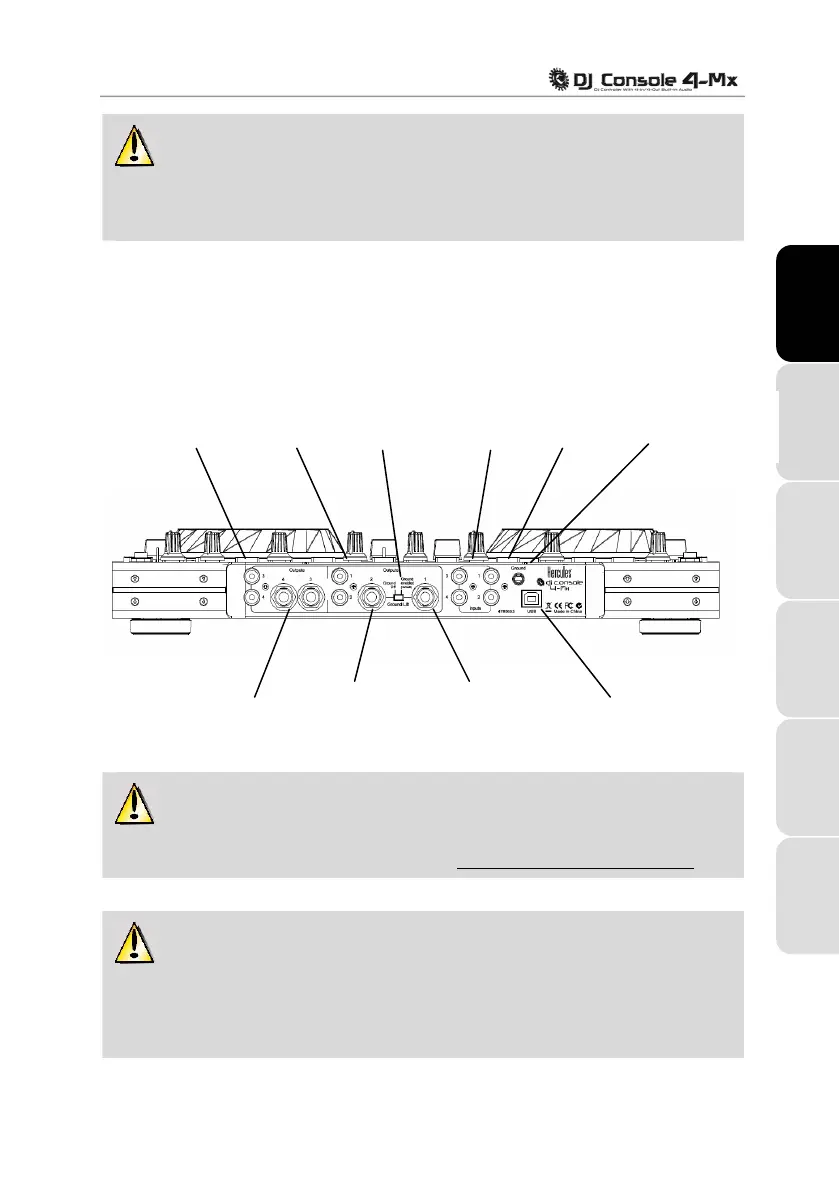

4.2. The back panel
ENGLISH
DJ Console 4-Mx has a USB connector on its back panel, allowing you to connect it to your
computer. As DJ Console 4-Mx is USB bus-powered, no external power source is required.
FRANÇAIS
ITALIANO DEUTSCH ESPAÑOL NEDERLANDS
RCA mono output
connectors 3-4
RCA mono output
connectors 1-2
1/4” (6.35mm) mono
output connectors 3-4
RCA mono input
connectors 3-4
RCA mono input
connectors 1-2
1/4” (6.35mm) mono
output connector 2
1/4” (6.35mm) mono
output connector 1
Ground Lift
switch
Phono ground
connector
USB connector
When connecting a microphone, the microphone can only be used on input channels 1-
2 (please see the front panel description, below). For more information on selecting input
levels for inputs 1-2 and 3-4, please refer to chapter 5.3.1. General control panel settings.
The Ground Lift switch, available on the 1/4” (6.35mm) mono output connectors 1 and
2, can be useful in the event that a ground loop is disturbing the connection between the
console and a power amplifier. In a room with a proper electrical setup, it is safer and better to
keep the Ground Lift switch Off (the default setting). The Ground Lift switch is not active on
RCA outputs 1-2.

Hercules DJ Console 4-Mx Specifications

General

Channels quantity	- channels
Digital sound processing	- bit
Booth out (1/4\")	1
Line inputs (RCA)	2
Minimum RAM	1024 MB
Minimum processor	1.5GHz
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
