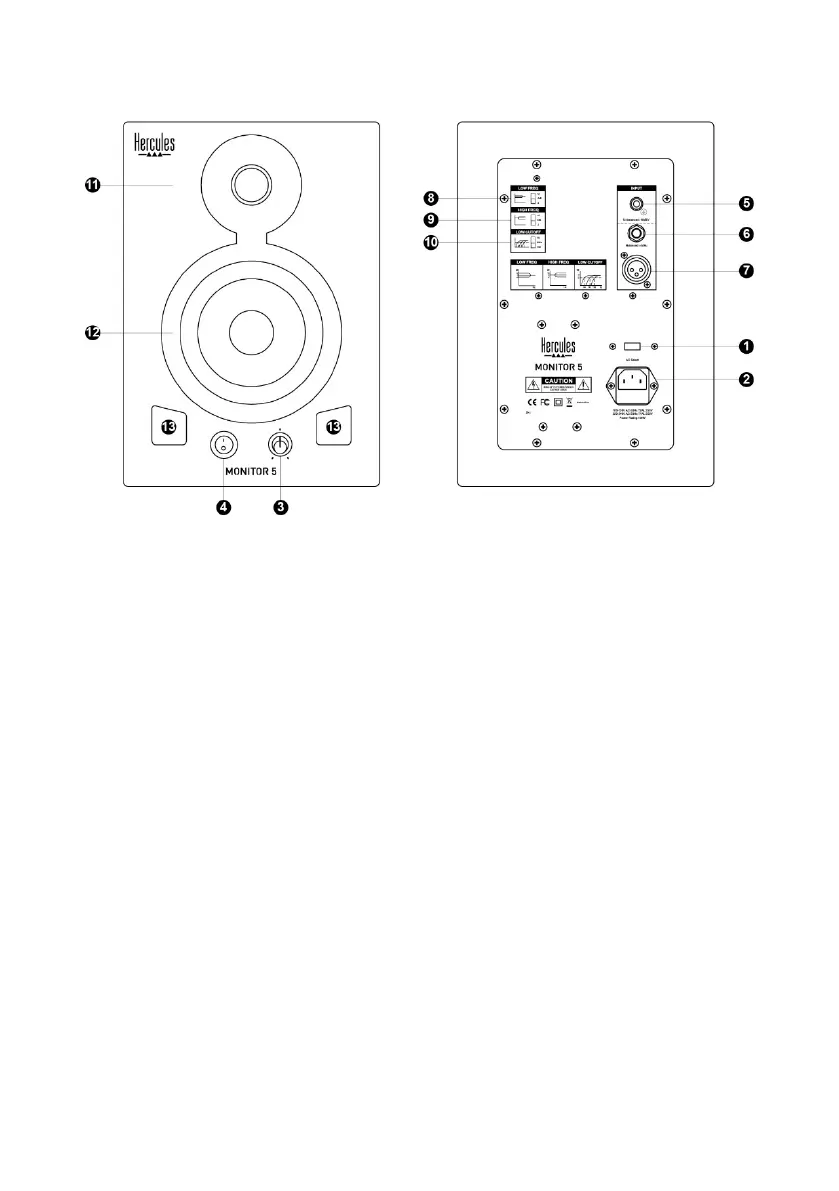

2.2. Overview of front and rear panels
1. Voltage selector
Two possible positions: 230 V for a 220-240 V
power supply, or 115 V for a 110-120 V power
supply.
2. Power connector
Connect the power cable here.
3. Volume knob and power LED
The LED lights up when the ON/OFF button is set
to ON.
4. ON/OFF button
When your audio system (
mixing console and
speakers) is connected, power on the Monitor 5
speakers last, and power off the Monitor 5
speakers before powering off your audio system.
5. RCA (Cinch) connector for main input
6. TRS connector for balanced input
6.35 mm jack type connector.
7. XLR connector for balanced input
The most frequently used connector with
professional equipment and installations, thanks to
its electrical and mechanical reliability.
8. Low Freq switch
Lets you adjust the level of the low
frequency range. +2 dB: increases the range
by 2 dB; 0: uniform frequency response; -2
dB: decreases the range by 2 dB.
9. High Freq switch
Lets you adjust the level of the high
frequency range. +2 dB: increases the range
by 2 dB; 0: uniform frequency response; -2
dB: decreases the range by 2 dB.
10. Low Cutoff switch
Three available cutoff frequencies
for the
low-cut filter: 56, 80 and 100 Hz.
11. Tweeter (high frequency driver)
Produces high frequency sounds.
12. Woofer (low frequency driver)
Produces low frequency sounds.
13. Bass reflex ports
Improve the rendering of low frequencies.
