Right handlebar controls
1. Electric starter switch ( )
The electric starter switch (1) is next to the
throttle grip.

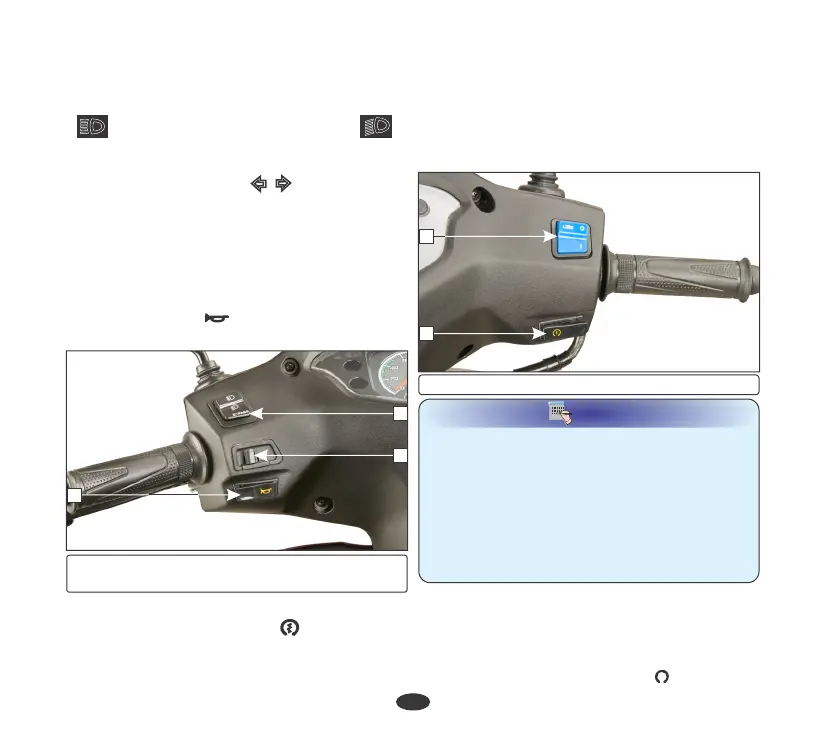

(1) Dimmer switch/Passing switch
(2) Turn signal switch (3) Horn switch
1
2
3
“ ” and downwards for low beam “ ”.
Press the switch to pass lamp position to
operate the pass lamp.
Left handlebar controls
2. Turn signal switch ( )
1. Dimmer switch/Passing switch
Shift the turn signal switch sideways for
right/left indications and leave it to come
back to its normal position on its own.
IMPORTANT: To switch “OFF” the turn
signal after completing the turn, gently push
inside as directed on the switch.
HANDLEBAR SWITCHES CONTROL
Press the switch upwards for high beam
3. Horn switch ( )
Press the horn switch to operate the horn.
When the starter switch is pressed, the starter
motor cranks the engine. See (page 43) for
the starting procedure.
2. i3s switch
There is an i3s switch (2) provided to enable
the rider for turning i3s mode “ON” or “OFF”
based on the traffic conditions.
(1) Electric starter switch (2) i3s switch
1
NOTE
• In case the engine gets started, cranking
(starter relay engagement) of engine will
stop after engine 900 r/minreaches .
• When cranking the engine by using brake &
starter switch or brake & slight throttle,
cranking of engine will stop after seconds, 5
if engine does not start. After that, brake &
starter switch or brake & slight throttle is
required to crank the engine.
(a) i3s (Idle stop start system)
•
Keep the i3s switch (1) to “OFF” position.
FEATURES
•
Turn the ignition key to “ON” ( ) position.
Starting & Warm up the engine:
2
