63
6
1

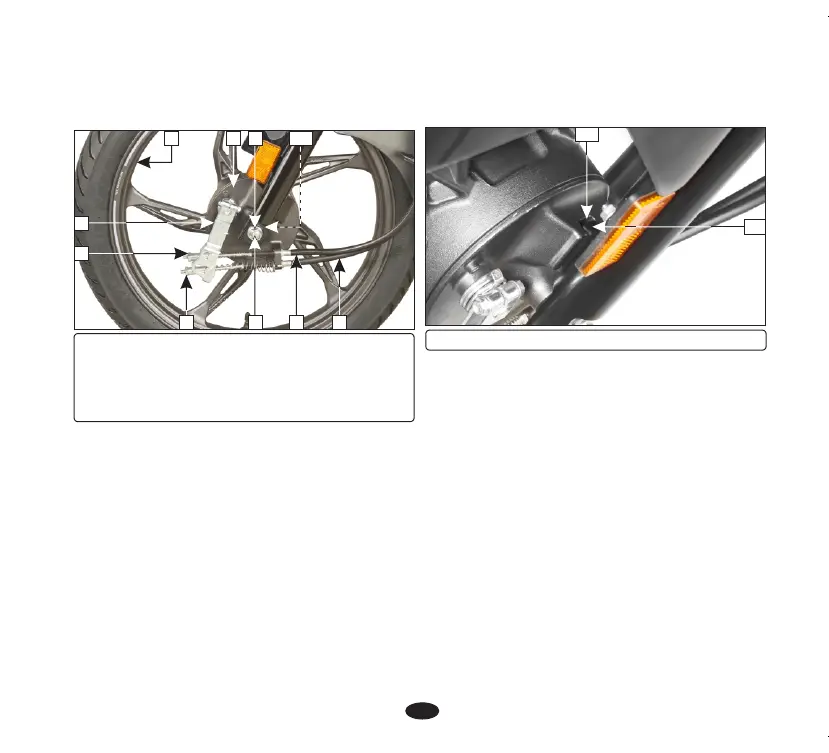

(1) Front brake cable (2) Integrated brake cable
(3) Brake arm (4) Brake panel
(5) Front brake adjusting nut
(6) Integrated brake adjusting nut (7) Axle nut
(8) Axle (9) Wheel (10) Side collar
3
Installation
•
Reverse the removal procedure.
•
Install the front wheel by ensuring that the
lug (11) on the left fork is located in the slot
(12) in the brake panel.
•
Tighten the axle nut.
Axle nut torque: 5.2 kgf-m
(c) Rear wheel
Removal
• Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
• Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake panel (5) by removing
split pin (6), lock nut (7) and washer (8).
(11) Lug (12) Slot
12
• Remove the axle nut (7).
•
Remove the axle (8) and wheel (9).
•
Remove the side collar (10).
• Adjust the front brake free play and
integrated brake free play (page 58).
• After installing wheel, apply the brake
several times and check for free wheel
rotation when released.
9 1074
85 2
11
