HERO GLAMOUR XTEC PROGRAMMED FI - Main;Side Stand Lubrication

64

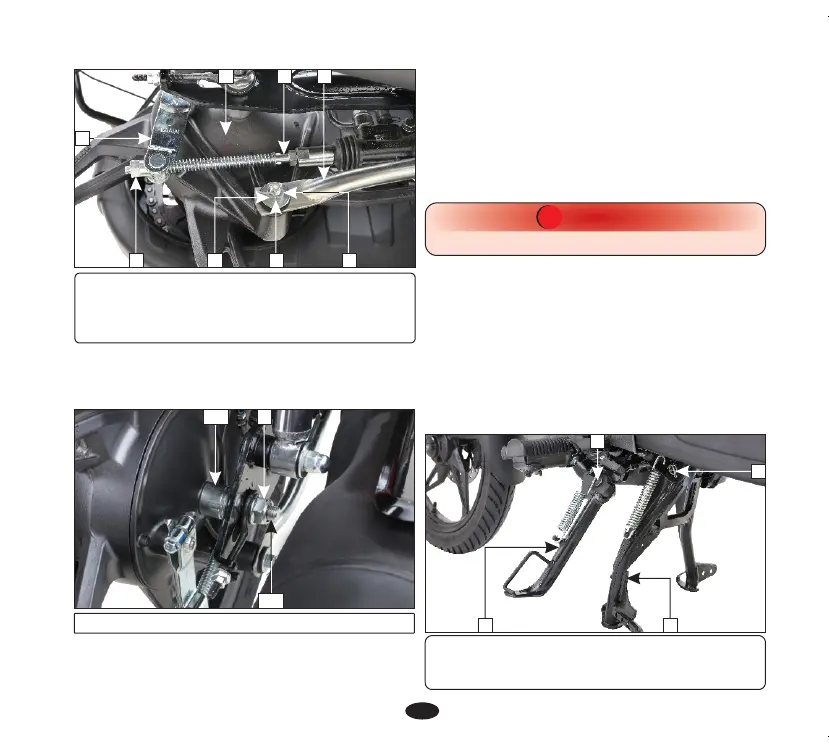

• Remove the rear axle nut (9).
• Pull out the axle (10) and collar (11).
• Remove the wheel.
11
(9) Axle nut (10) Axle (11) Collar
9
(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
(8) Washer
1
2 4
3
5
6
7
8
10
Installation
•
Reverse the removal procedure.
Axle nut torque: 5.2 kgf-m
CAUTION
!!
Always replace used split pins with new ones.
MAIN/SIDE STAND LUBRICATION
•
Park the vehicle on the level surface.
•
Check the main/side stand return spring for
damage or loss of tension.
•
Check the main stand (1)/side stand (2)
for freedom of movement.
•
Clean and lubricate the side stand pivot bolt (3)
and rear brake pedal/main stand pivot (4).
•
Make sure the side/main stand is not bent.
(1) Main stand (2) Side stand
(3) Side stand pivot bolt
(4) Rear brake pedal/Main stand pivot
Brake stopper arm nut torque:
2.2 kgf-m
•
Adjust the rear brake free play (page 59)
and drive chain slackness (page 53).
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
4
3
