HERO HF-DAWN - OIL FILTER AND AIR CLEANER MAINTENANCE; Oil Filter Screen and Centrifugal Filter Cleaning

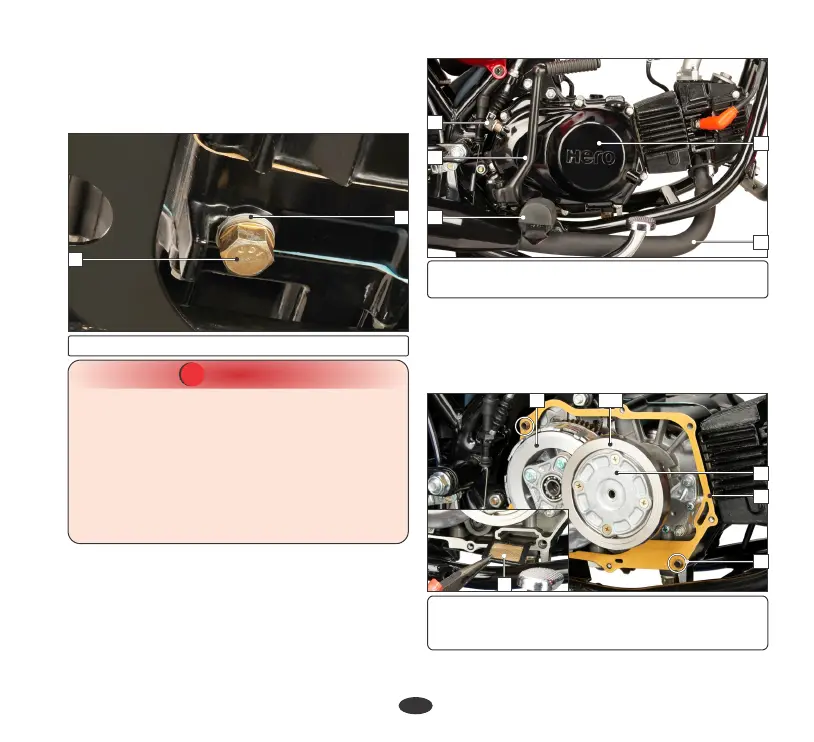

(1) Drain plug (2) Sealing washer
CAUTION
!!
•
Running the engine with insufficient oil can
cause serious engine damage.
•
Engine oil is a major factor affecting the
performance and service life of the engine.
Non-detergent, vegetable or castor based
racing oils are not recommended.
•
Running the engine with excessive oil can
cause spark plug fouling & loss in
performance.
•
Make sure that oil level is at the “UPPER”
level mark of the oil level dipstick with the
vehicle in an upright position and that there
are no oil leaks.
2
•
Drain the engine oil thoroughly.
•
Remove the kick starter pedal (1), disconnect
the clutch cable (2), remove the muffler (3),
remove the right side rider footrest (4) and
remove the right crankcase cover (5).
•
Remove gasket (6) and dowel pins (7).
Oil filter screen & centrifugal filter
cleaning
•
Remove the oil filter screen (8) and wash it
in clean non flammable or high flash point
solvent (kerosene).
•
Reinstall the oil filter screen with the sharp
edged side facing inwards.
(1) Kick starter pedal (2) Clutch cable (3) Muffler
(4) Rider foot rest (5) Right crankcase cover
5
3
4
1
2
(6) Gasket (7) Dowel pins
(8) Oil filter screen (9) Centrifugal filter cover
(10) Centrifugal filter
6
9
7
29
7
8
10
•
Remove centrifugal filter cover (9) & clean
the centrifugal filter (10) with non
