Reinstall the centrifugal filter cover, right
crankcase cover, kick start pedal & clutch
cable.
flammable or high flash point solvent
(kerosene).
•
Reinstall the dowel pins and gasket.
•
Fill the crankcase with clean engine oil as
per specification.
Air cleaner
(a) Air cleaner element inspection
The air cleaner element is of dry paper pleated
type and it should be serviced at regular
intervals (page 24). When riding in dusty
areas, more frequent service may be
necessary.
7
8

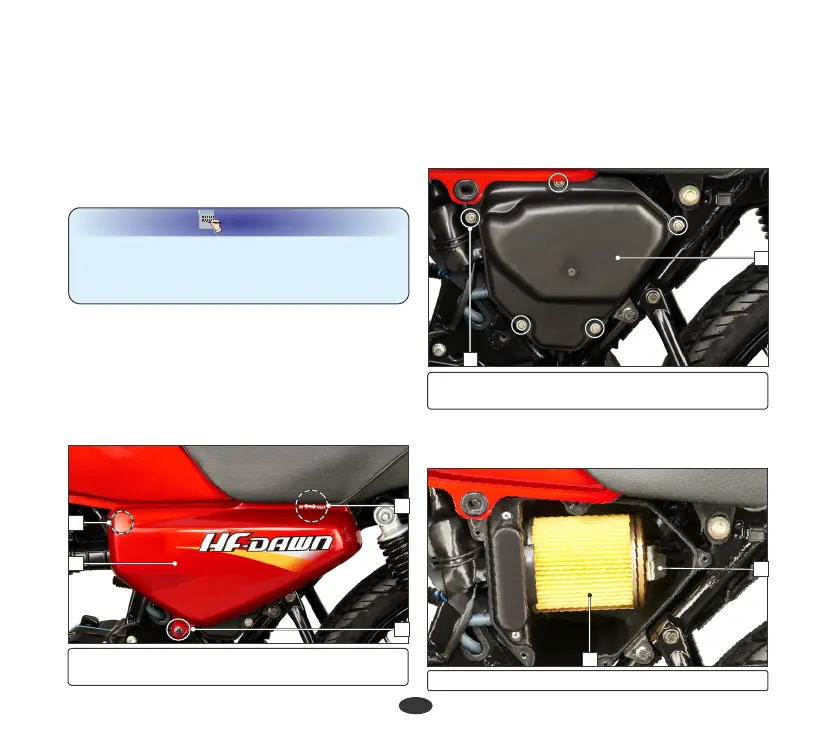

(1) Side cover (2) Side cover bolt
(3) Lug (4) Direction indicator
•
Remove the air cleaner cover screws (5)
and the cover (6).
•
Remove the side cover (1) by removing
side cover bolt (2). Pull out lug (3) from the
grommet and slide the cover as per
direction indicator (4).
(7) Air cleaner assembly (8) Mounting clamp
•
Press the mounting clamp (8) to release the
air cleaner assembly from the housing and
remove the air cleaner assembly (7).
6
(5) Air cleaner cover screws
(6) Air cleaner cover
5
30
3
2
•
Clean filters as specified in the maintenance
schedule.
•
Ensure to replace gasket with new one once
removed.
NOTE
4
1
