RearFront
Suspension

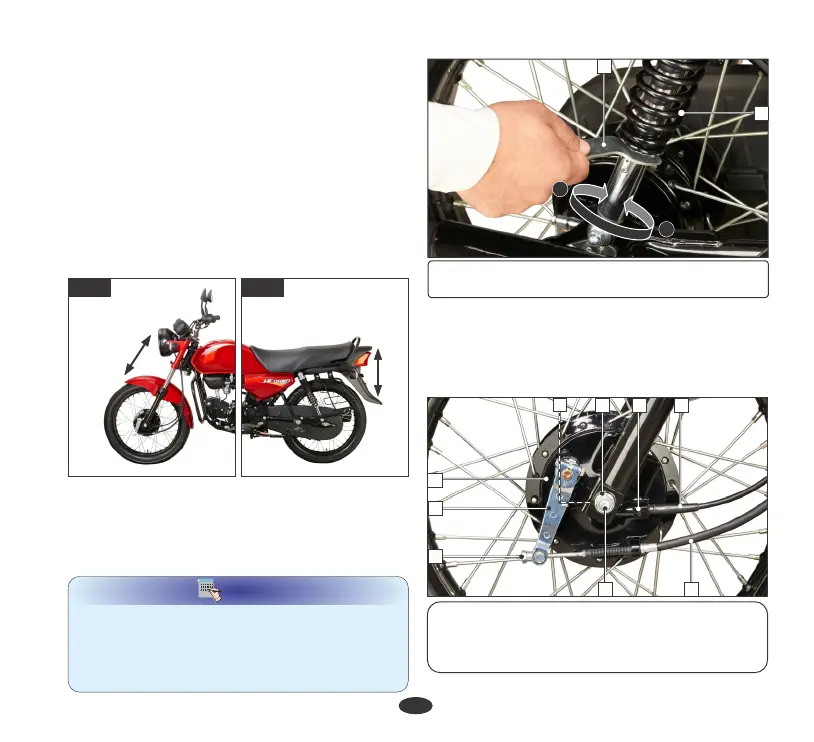

(a) Front and rear suspension inspection
Ÿ Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no oil
leakage.
Ÿ Check the rear shock absorber by pushing
hard downwards on rear carrier while the
vehicle is not parked on stand. The
suspension action should be smooth and
there should be no oil leakage.
(b) Rear shock absorber adjustment
Rear shock absorber adjustment can be made
according to the load/road conditions.
Ÿ In direction B: Softer
Ÿ In direction A: Stiffer
A
B
1
(1) Pin spanner (2) Rear shock absorber
(A) Stiffer (B) Softer
NOTE
Always adjust both the rear shock absorber to
the same position. Tp adjusted the rear shock
absorber (2), use the rear shock absorber
adjustment tool (pin spanner) (1) available in
the tool kit.
5
1
2
7
4
6
3
9
(1) Speedometer cable (2) Tab (3) Front
brake cable (4) Brake arm (5) Brake panel
(6) Front brake adjusting nut (7) Axle nut
(8) Axle (9) Collar
Ÿ Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
Wheel
(a) Front wheel removal
40
8
2
