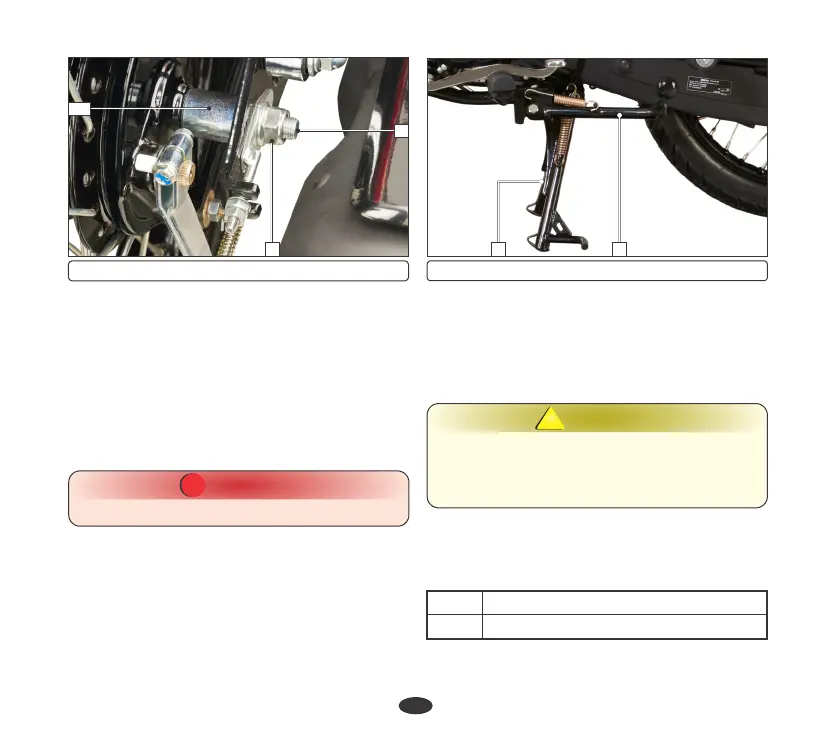

(8) Axle nut (9) Axle (10) Collar
CAUTION
!!
Always replace used split pins with new ones.
Installation
Brake stopper arm nut torque : 2.2 kgf-m
Ÿ Reverse the removal procedure
Ÿ Adjust the brake (page 40) and drive
chain (page 35).
Ÿ After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
Axle nut torque : 5.4 kgf-m
9
8
10
Main/Side stand lubrication
Ÿ Check the main/side stand return spring for
damage or loss of tension.
Ÿ Park the vehicle on the level surface.
Ÿ Lubricate the side stand pivot if necessary.
Ÿ Check the main stand (1)/side stand (2)
for freedom of movement.
Ÿ Make sure the side stand is not bent.
(1) Main stand (2) Side stand
1 2
To safely operate your vehicle, the tyres must be
of recommended type and size, in good
condition with adequate tread, and correctly
inflated. The recommended tyres size is :
The tyres that are fitted on your vehicle are
designed to match the performance
capabilities of your vehicle and provide the
best combination of handling, braking,
durability and comfort.
Tyre
The imported tyre(s) if fitted without ISI mark;
are in compliance of BIS standard and Central
Motor Vehicle Rules 1989, as declared by the
Tyre manufacturer.
WARNING
!!
Front
Rear
2.75 x 18-4PR/42P
2.75 x 18-6PR/48P
Properly inflated tyres provide the best
Air Pressure
42
