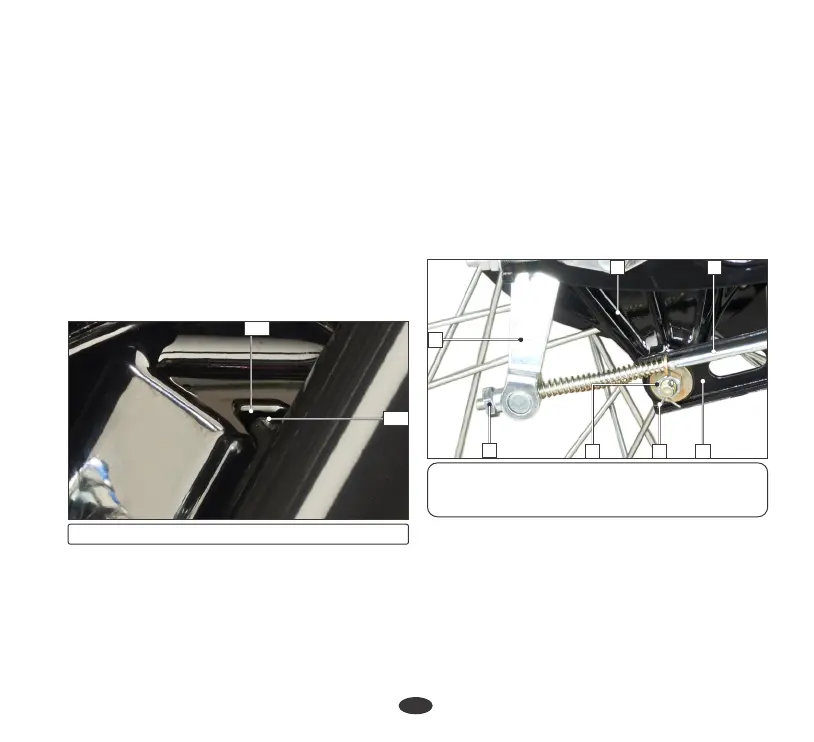

(10) Lug (11) Slot
Ÿ Remove the axle nut (7).
Ÿ Remove the wheel.
Ÿ Remove the speedometer cable (1) by
pressing the tab (2) & then pull out the
cable.
Installation
Ÿ Reverse the removal procedure
Ÿ Disconnect the brake cable (3) from brake
arm (4) and brake panel (5) by removing
the front brake adjusting nut (6).
Ÿ Remove the axle (8) and the collar (9)
Ÿ Install the front wheel by ensuring that the
lug (10) on the left fork is located in the slot
(11) in the brake panel.
Ÿ Rotate the front wheel & see if the
speedometer needle is working.
Ÿ Tighten the axle nut to the specified torque.
Axle nut torque:5.4 kgf-m
Ÿ Adjust the front brake (page 37).
Ÿ After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
Ÿ Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
(b) Rear wheel removal
Ÿ Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal.
Ÿ Disconnect the brake stopper arm (4) from
the brake panel (5) by removing split pin
(6) and nut (7).
11
(1) Rear brake adjusting nut (2) Rear brake
rod (3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
Ÿ Remove the axle nut (8) and pull the axle
(9).
Ÿ Remove the collar (10) Remove the wheel.
10
2
1
4
5
6
3
41
7
