HERO HF-DAWN - BRAKE SYSTEM MAINTENANCE; Front Brake Adjustment and Wear Check; Rear Brake Adjustment and Wear Check

1
2

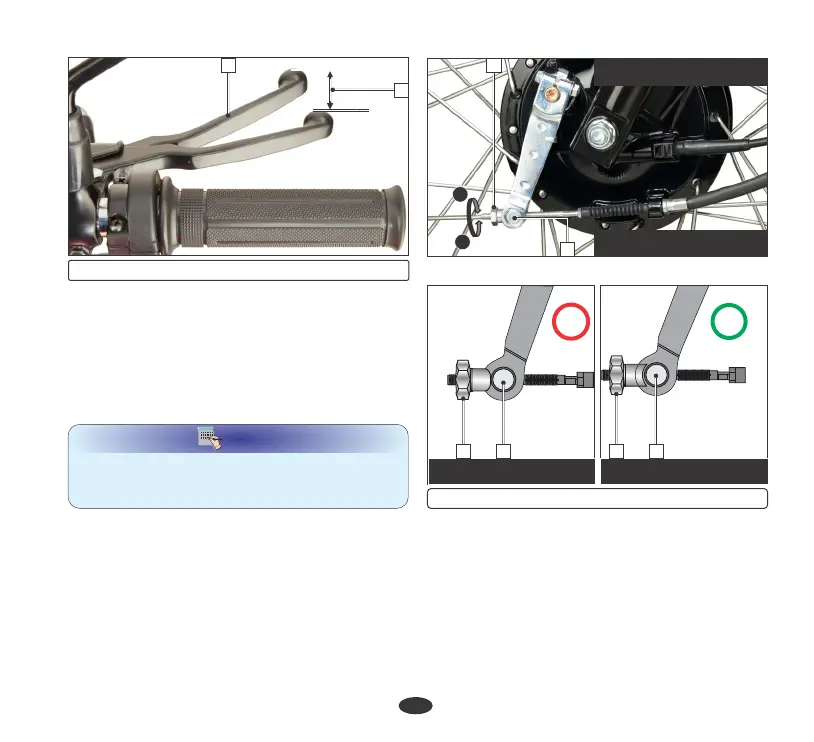

(1) Front brake lever (2) Free play:10-20 mm
NOTE
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
3
A
B
(A) Decrease free play (CW)
(B) Increase free play (ACW)
4
Ÿ
Make sure that the cut-out on the adjusting
Adjustment
Ÿ
Park the vehicle on its main stand.
Ÿ
Measure the distance brake pedal (1) moves
before the brake starts to take holed. Free play
(2) should be 20-30 mm .
Ÿ
If adjustment is necessary, turn the rear
brake adjusting nut (3).
(b) Rear brake inspection
(3) Adjusting nut (4) Brake joint pin
ü
X
(A) Cut-out not seated (B) Cut-out seated
3
44
3
Ÿ
Apply the brake several times and check for
free wheel rotation when released.
Ÿ
If adjustment is necessary, turn the adjusting
nut (3).
Ÿ
Make sure that cut-out on the adjusting nut
is seated on the brake joint pin (4) after
making final free play adjustment.
CW- Clockwise, ACW- Anticlockwise
