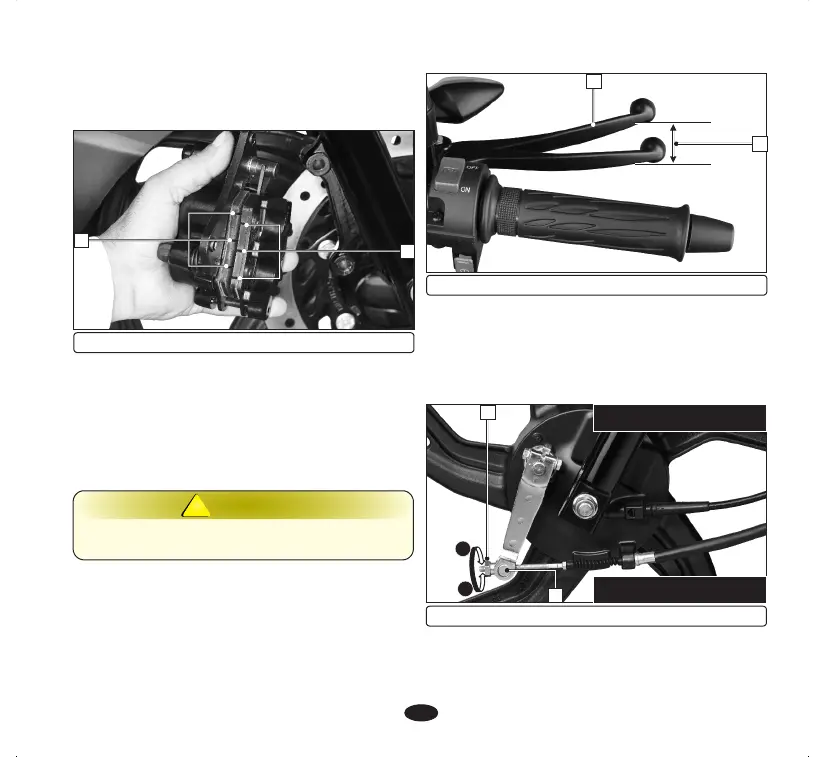

(1) Wear indicator groove
Inspection
•
Check the wear indicator marks (1) on
each pad.
1
1
•
Visit your Authorised Distributor/Dealer for
the brake pad replacement.
•
Check the brake pads for wear by examining
the wear limit grooves on each pad.
•
Replace the pads if worn out to the bottom
of the grooves.
•
Always replace both the pads as a set.
41
WARNING
!!
Always apply front and rear brakes
simultaneously to avoid skidding of vehicle.
•
Measure the distance of front brake lever
(1) moves before the brakes starts to take
hold. Free play (2) should be 10-20 mm
at the tip of the brake lever.
Adjustment
(b) Front brake inspection (Drum type)
•
Park the vehicle on its main stand.
(1) Front brake lever (2) Free play:10-20 mm
2
1
•
Make sure the cut-out on the adjusting nut
is seated on the brake joint pin (4) after
making final free play adjustment.
•
Make free play adjustment by turning the
adjusting nut (3).
4
B
(A) Decrease free play (CW)
A
(B) Increase free play (ACW)
3
(3) Adjusting nut (4) Brake joint pin
•
Apply the brake several times and check for
free wheel rotation when released.
