HERO IGNITOR TECHNO - Tyres

46
1 3 5 2
7 6 4

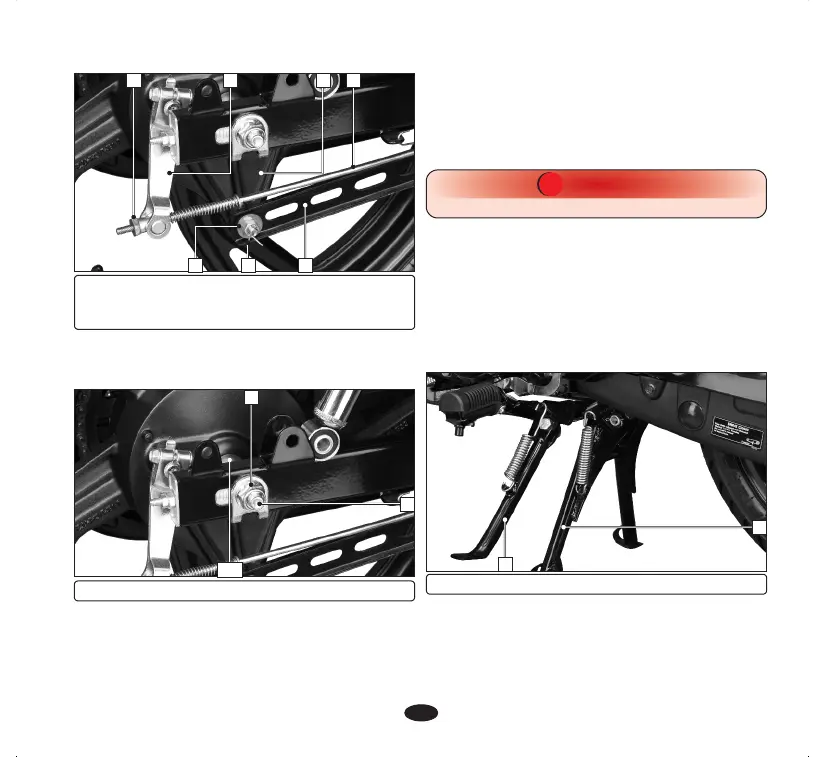

(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
•
Remove the wheel.
•
Pull out the axle (9) and collar (10).
•
Remove the rear axle nut (8).
(8) Axle nut (9) Axle (10) Collar
2.2 kgf-m
•
Reverse the removal procedure
Brake stopper arm nut torque:
Axle nut torque: 5.2 kgf-m
Rear wheel installation
CAUTION
!!
Always replace used split pins with new ones.
Main/Side stand lubrication
•
Park the vehicle on the level surface.
•
Check the main/side stand return spring for
damage or loss of tension.
•
Check the main stand (1)/side stand (2)
for freedom of movement.
•
Lubricate the side stand pivot if necessary.
•
Make sure the side/main stand is not bent.
9
8
•
Adjust the rear brake (page 42) and drive
chain (page 37).
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
(1) Main stand (2) Side stand
1
2
Tyres
To safely operate your vehicle, your tyres must
be of the proper type and size, in good
The tyres fitted on your vehicles are of
TUBELESS type.
