40

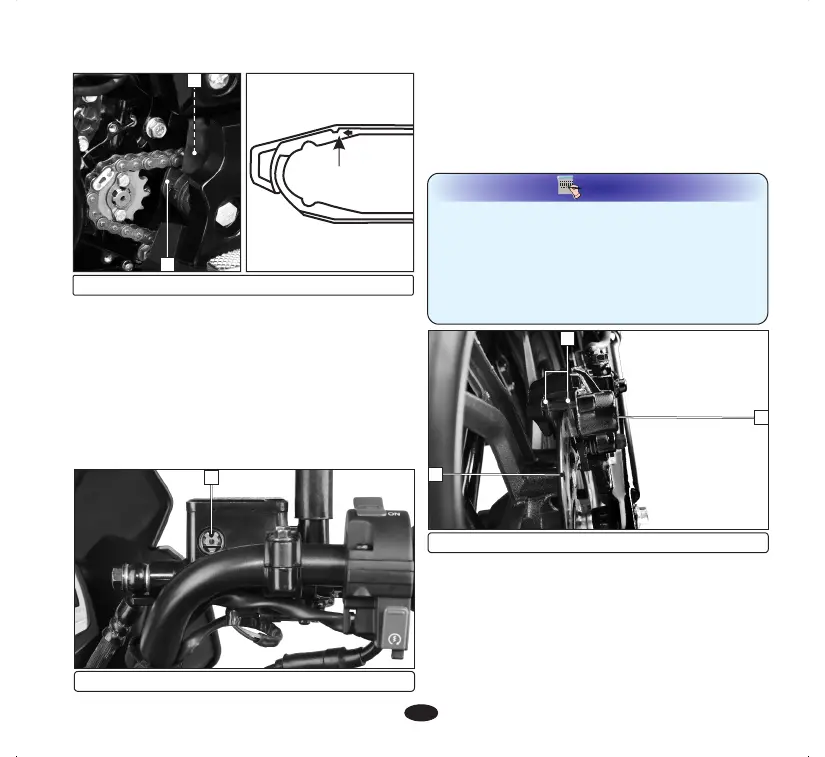

(1) Chain slider (2) Wear limit
2
1
(a) Front brake inspection (Disc type)
Brakes
Fluid level-Ensure that the brake fluid level
does not fall below “MIN” mark (1) on the
master cylinder, when checked with the
master cylinder parallel to the ground.
Master cylinder/reservoir location: Right
handlebar.
Brake fluid recommended: DoT 3 or DoT 4
(1) "MIN" mark
The level decreases gradually due to piston
movement to compensate pad wear. If the
level decreases abruptly, check for leakage in
the brake system and contact your Authorised
Distributor/Dealer.
NOTE
•
Always contact your Authorised Distributor/
Dealer for refilling of master cylinder when
necessary . Do not mix DoT 3 and DoT 4
brake fluid.
•
Clean the dirt and mud accumulation
between the brake pads (2), caliper (3) and
the disc (4) by using a water jet.
Brake pad wear (Front Brake)
Brake pad wear depends upon the severity of
usage, the type of riding & road conditions.
Generally, the pads will wear faster on wet &
dirty roads. Inspect the pads at each regular
maintenance interval.
(2) Brake pads (3) Caliper (4) Disc
4
2
3
MIN
1
