Disconnect the headlamp connector (5),
and remove the headlamp case.
(4) Screws
4
(1) Bolt (A) Up (B) Down
(5) Headlamp connector
Installation is in the reverse order of removal.
Installation
•
Park the vehicle on main stand on a
level surface in front of a wall.

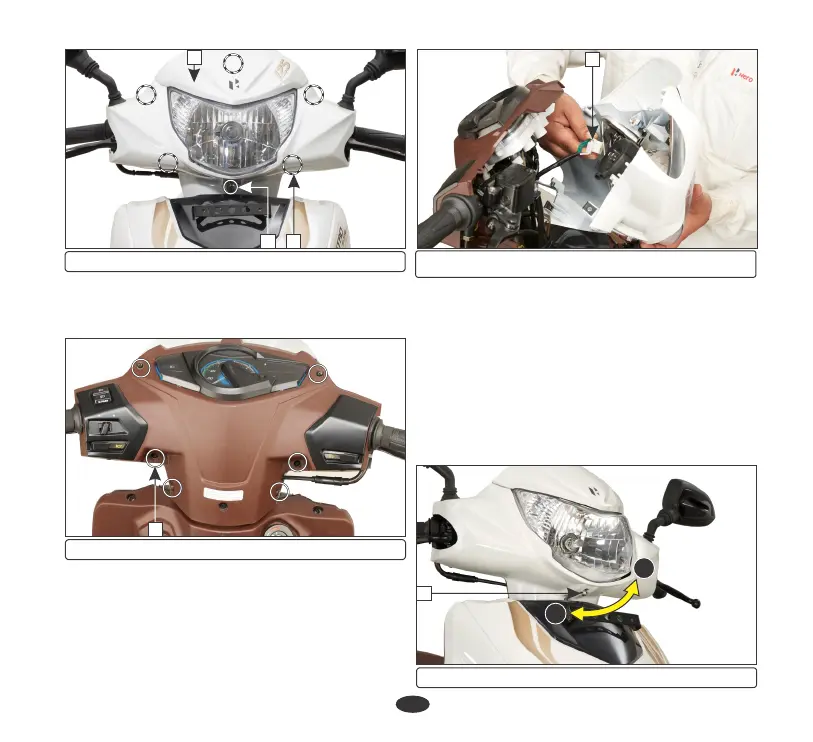

(g) Headlamp focus adjustment
Vertical adjustment
Headlamp focus is factory preset. However in
case of adjustment required please follow the
steps as given below.
•
Pull the headlamp case (2) slightly up,
carefully release the tabs (3) from the slots.
•
Remove the screws (4).
A
B
1
5
(1) Screw (2) Headlamp case (3) Tabs
2
1 3
