65
Spare fuse (2) : 15A and 10A
•
Check the bolts and other fasteners are
secured.
(A): Main fuse (1) : 15A and 10A
Spare fuse (4) : 10A and 7.5A

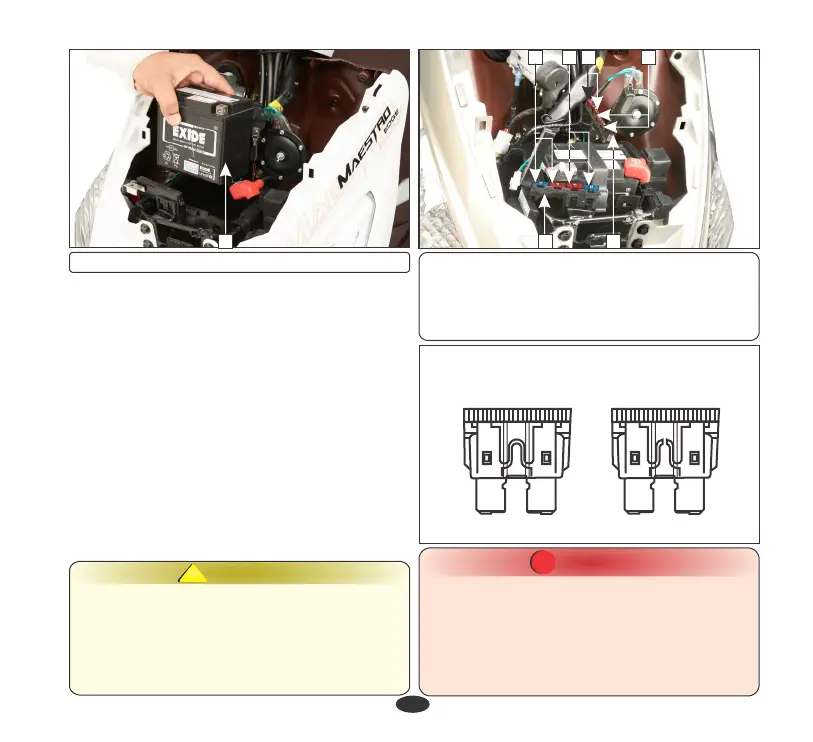

Battery installation
The fuse holders (A) and (B) placed adjacent
to the battery which consist of main fuse and
spare fuse.
(B): Main fuse (3) : 10A and 7.5A
•
Reinstall in the reverse order of removal. Be
sure to connect the (+)ve terminal first, then
the (-)ve terminal.
FUSE REPLACEMENT
(5) Battery
5
WARNING
!!
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
•
Battery fives off explosive gases. Keep
sparks, flames & cigarettes away.
(A) & (B): Fuse holders
(1) Main fuse : 15A & 10A
(2) Spare fuse: 15A & 10A
(3) Main fuse : 10A & 7.5A
(4) Spare fuse: 10A & 7.5A
3 4
B
2 1
A
CAUTION
!!
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
