WARNING
!!
Always apply front and rear brakes
simultaneously to avoid skidding of vehicle.

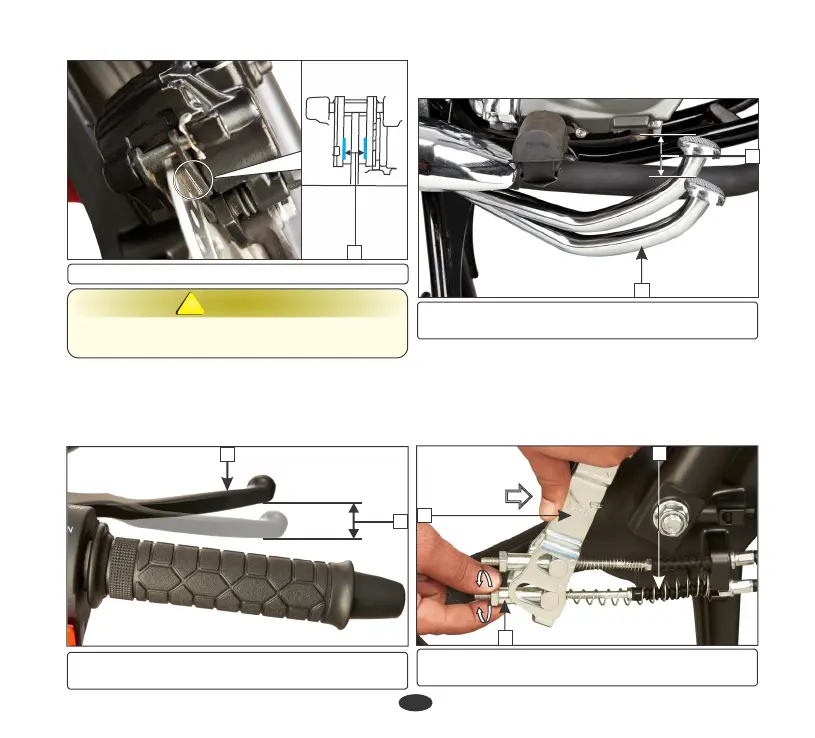

Brakes (Integrated braking system)
(Drum type)
Brakes are items of personal safety and should
always be maintained with proper adjustments.
(1) Front brake lever
(3) Free play 10-20 mm
1
3
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
43
(2) Integrated/Rear brake pedal
(3) Free play 20-30 mm
2
3
(d) Front brake cable (A) on “F”
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
brake starts to engage is called free play (3).
side Adjustment
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
A
4
5
F
C
(1) Wear indicator groove
1
