HERO Passion Xpro - Page 47

(3) Adjusting nut (4) Brake joint pin
3
4
A
B
(A) Decrease free play (CW)
(B) Increase free play (ACW)
Adjustment
•
Park the vehicle on its main stand.

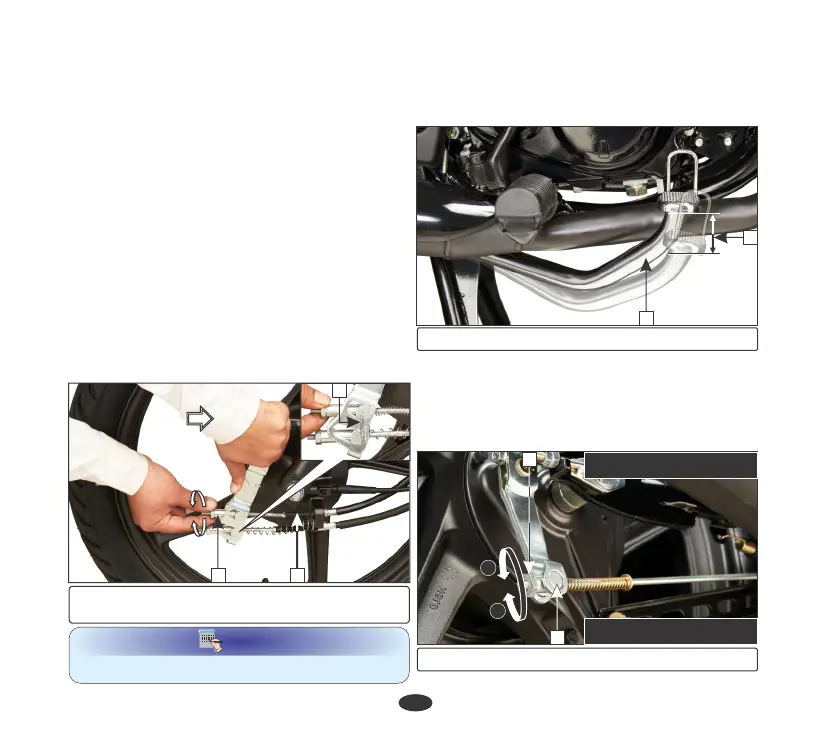

(f) Rear brake inspection
(1) Rear brake pedal (2) Free play:20-30 mm
2
1
44
•
Push the integrated brake arm (4) by hand
in the direction as shown.
•
Turn the first adjuster nut (5) till you cannot
turn it by hand.
•
Check the free play of front brake lever.
FREE PLAY: 10-20 mm
•
If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free play.
(e) Integrated brake cable (B) on “C”
side.
•
Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
•
Push the integrated brake arm (4) by hand
in the direction as shown.
•
After ensuring the gap, turn the second
adjuster nut counterclockwise by half rotation.
(6) S econd adjuster nut (7)Joint
(i) Decrease free play (ii) Increase free play
(i)
(ii)
B6
7
F
C
NOTE
“F” & “C” is marked on integrated brake arm.
•
If adjustment is necessary, turn the rear
brake adjusting nut (3).
•
Measure the brake pedal free play (1)
moves before the brake starts to take hold.
Free play (2) should be 20-30 mm.
