Description of the menu navigation and adjustment values
9
Betriebsanleitung_firestar_18-40_Lambda_Englisch_V1.6 21
DESCRIPTION
S11
SECONDARY AIR FLAP (password protected)
Displays the actual SECONDARY AIR FLAP position in %
S12
BACKFLOW PUMP
Displays the condition of the backflow pump
S13
BACKFLOW MIXER OPEN
Displays condition of the BF-Mixer
S14
BACKFLOW MIXER CLOSED
Displays condition of the BF-Mixer
S15
HEAT EXCHANGER CLEANING (HEC) (password protected)
Displays the condition of the HEAT EXCHANGER CLEANING
S16
HEC MONITORING (password protected)
Displays the condition of the HEAT EXCHANGER CLEANING MONITORING
S17
COMPOSITE ERROR / ALARM
Alarm contact
S18
HARDWARE-VERSION HZS621
S19
SOFTWARE-VERSION HZS621
S20
HARDWARE-VERSION HZS631
S21
SOFTWARE-VERSION HZS631

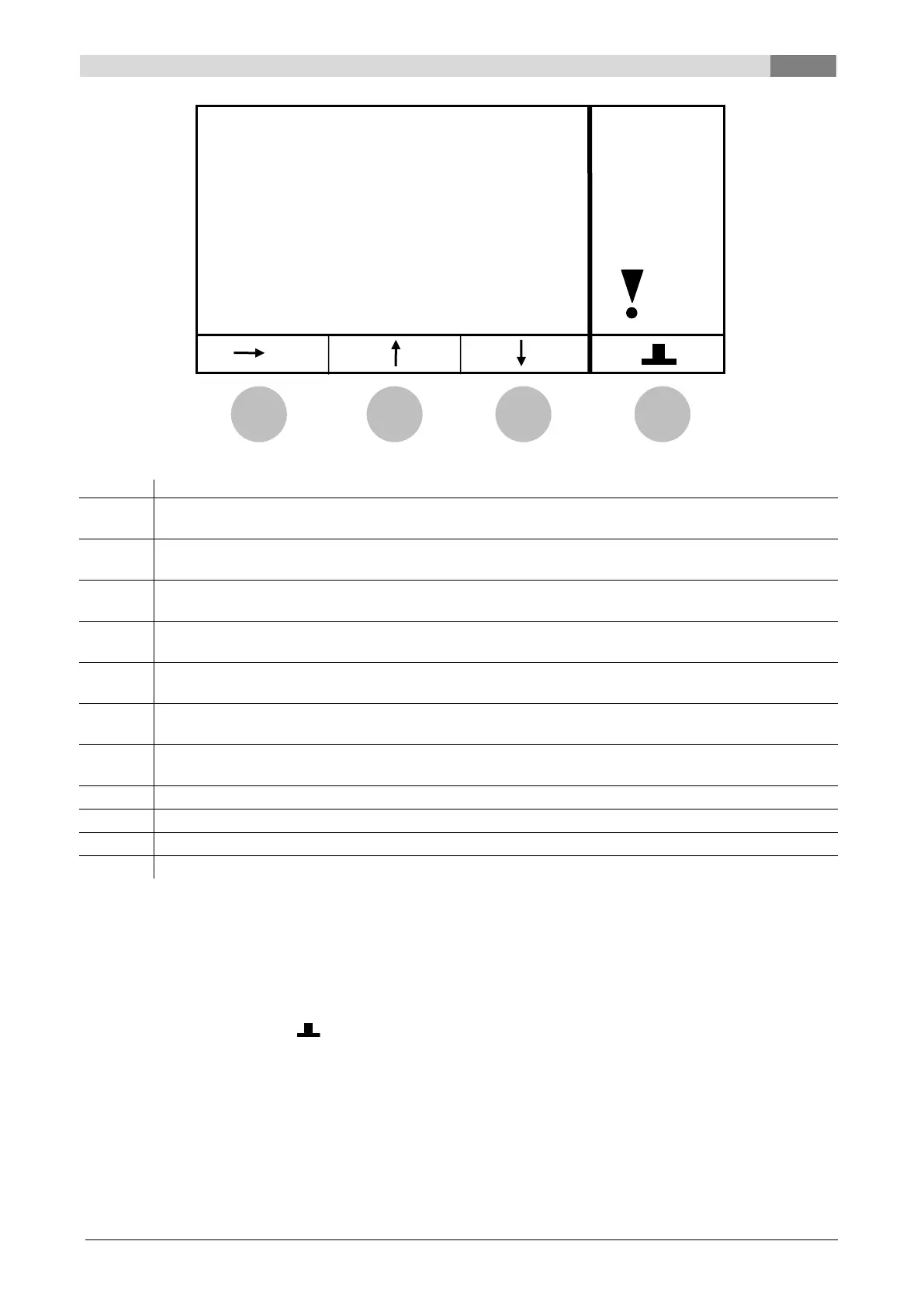

By pressing the button:
„On/Off“:
long: the equipment is switched on/off
brief: the fault check is started
„F1“:
(P) changes to the „PARAMETER“ menu
„F2“:
The bar is pushed up
„F3“:
The bar is pushed down
„F4“:
If the symbol „ “ is displayed, then the status (condition) changes into condition
CHIMNEY SWEEPER(9).
