Description of the menu navigation and adjustment values
9
Betriebsanleitung_firestar_18-40_Lambda_Englisch_V1.6 23
DESCRIPTION
P11
RESIDUAL HEAT TEMPERATURE (password protected)
Temperature which specifies how far the boiler may be “emptied” when recharging or from when
the return flow bypass pump is switched on
P12
BACKFLOW-MUST (password protected)
Setting value of the backflow temperature
P13
MIXER RUNNING TIME (password protected)
Adjust specified mixer run time on the motor mixer
P14
KP (password protected)
P part of the Backflow-control
P15
KD (password protected)
D part of the Backflow-control
P16
TTOT (password protected)
Setting value of the system break
P17
RESET STANDARD VALUES (password protected) :
Re-setting the parameters to preset values (only in condition UNIT OFF(1))
P18
CHOICE BOILER TYPE (password protected):
Choice of boiler (only in condition UNIT OFF(1))
P19
CHOICE ADDITIONAL CIRCUIT BOARD(password protected):
Choice of additional circuit board (only in condition UNIT OFF(1))
P20
LAMBDA CALIBRATION (password protected):
Starts the Lambda calibration (only in condition UNIT OFF(1))
P21
SET CONTRAST
P22
ID FAN - Impulse
Selection: 0 / 1 / 6 / 11 / 12 Impulse

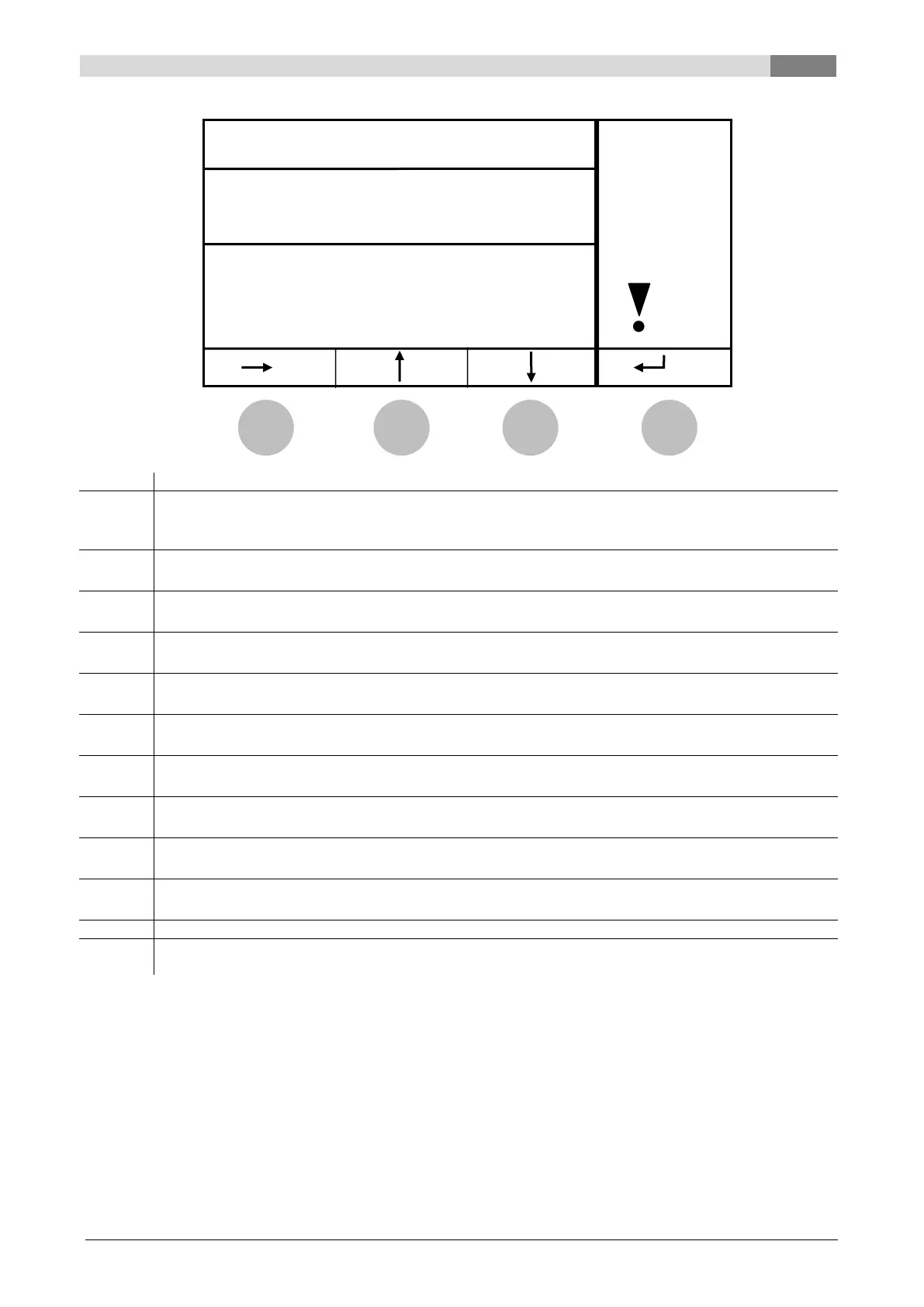

By pressing the button:
„On/Off“:
The equipment is switched on/off
„F1“:
(S) changes into menu „STATUS“
(A) changes into menu „AGGREGATETEST-OUTPUT“ (if Code is active)
„F2“:
The bar is pushed up
„F3“:
The bar is pushed down
„F4“:
The value can be modified
