Heta GREEN200 - Page 24

24

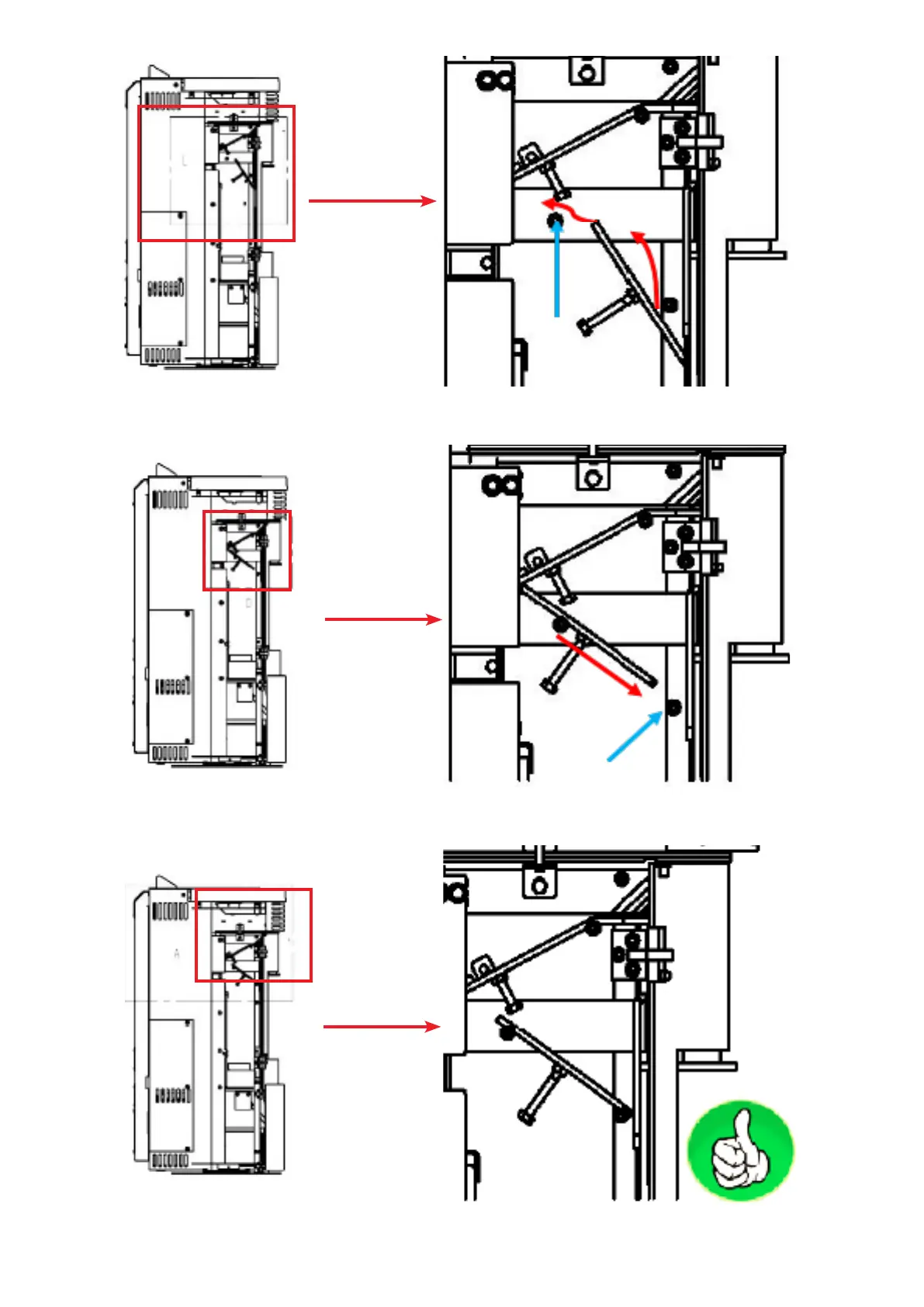

Put the back end of the baffleplate on top of the screw in the right and left side.
Push the front of the baffleplate upwards and pull it forwards on top of the front screw in both sides.
The baffleplate must be mounted as shown.
