High Flying test server address: test.server.iotworkshop.com, the server will send back
the received data.
TCP Port: 40432
UDP Port: 40431
The data sent from the serial input field can be seen in the receiving area to receive the
same data.
3.3. MQTT Transmission in STA Mode
The configuration module is connected to the router, and the MQTT server, the theme,
and the like are configured. This function is supported in 4.13.24 and later versions. The High
Flying MQTT test server: 112.124.43.15, port 1883.

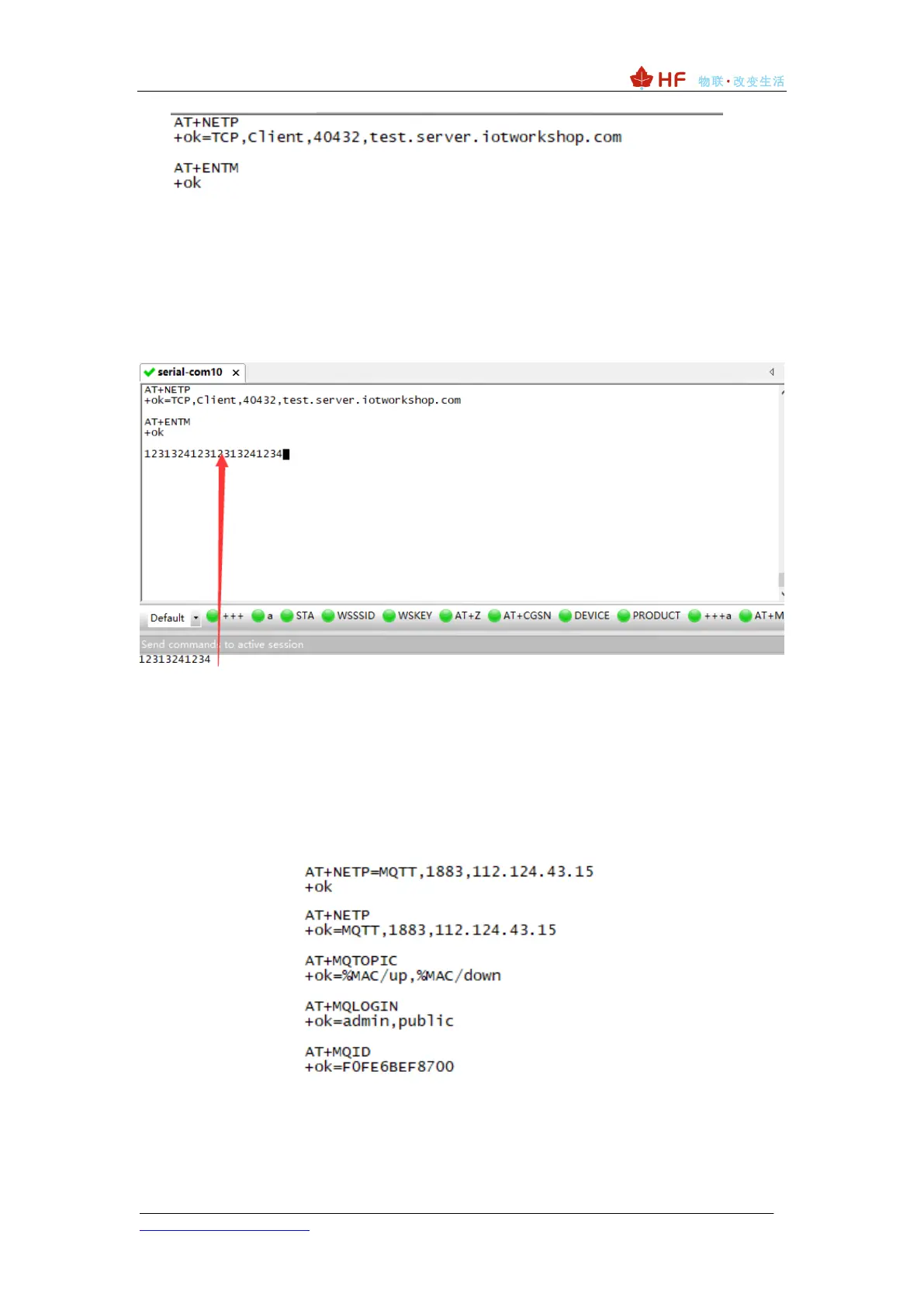

AT+NETP=MQTT, 1883, 112.124.43.15, first set the MQTT server information and then
set other topics, etc. The default parameters are as shown below. After the configuration is
completed, AT+Z or reset restarts the module.
Open the MQTTfx tool and fill in the server address information as well.
