Hi-Link HLK-RM04 User Manual

Hi-Link (HK)Co.,Ltd sky:hlktech
Http://www.hlktech.net Tel:0755-23152658-821
19

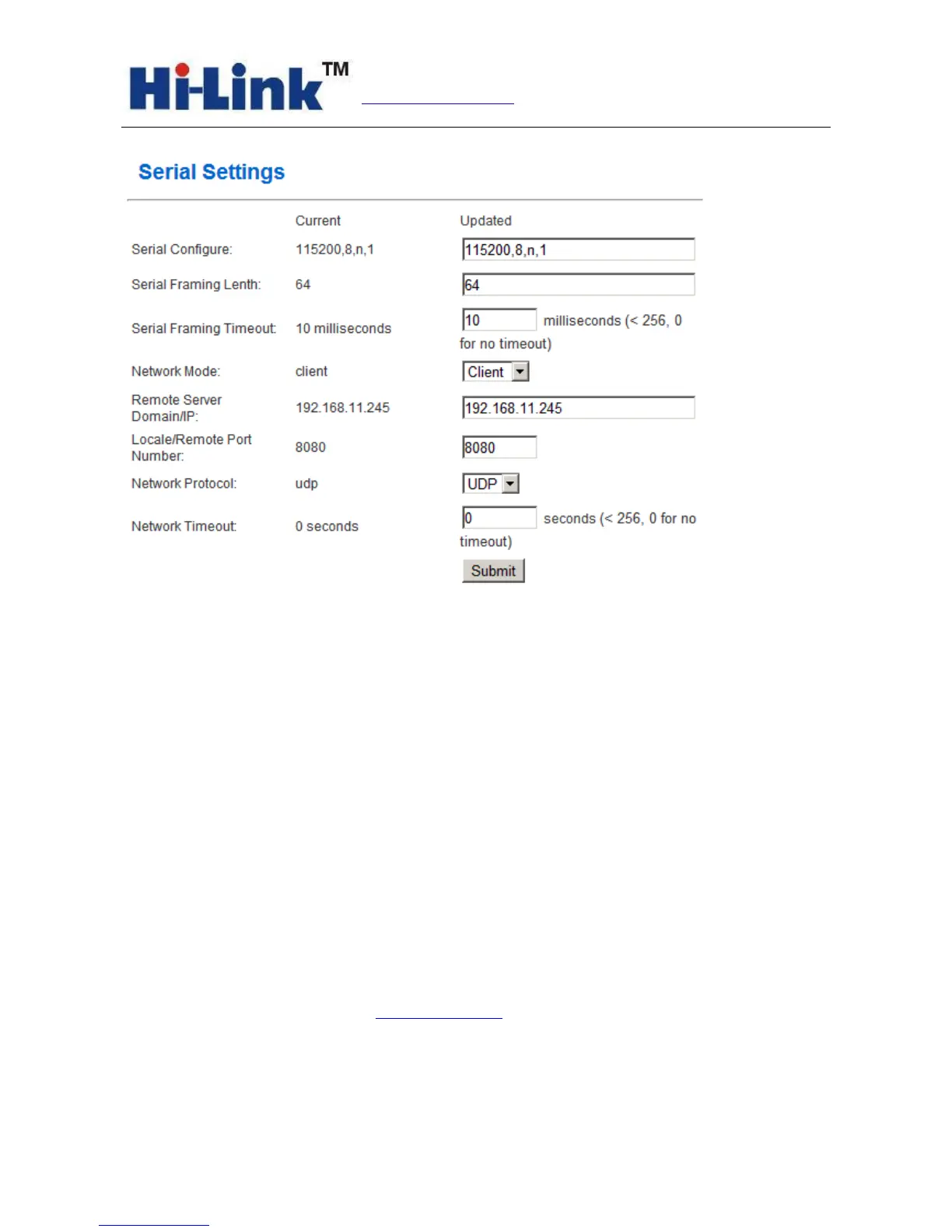

Current shows the current configuration ，Updated shows the current revision parameters。
Submit submit the revision.
Serial Configure：Serial configuration.fomat：Baud rate, data bits, parity bit, stop bit.
For example：“115200,8,n,1”.
Serial Framing Lenth：The Lenth of Serial Framing
Serial Framing Timeout：The time of Serial Framing
Network Mode：choose Client、Server or none。
Remote Server Domain/IP：Remote Server Domain/IP address
For exmpale：192.168.11.245 or www.hlktech.com .
Locale/Remote Port Number：The specified parameter is not the same under the different network
modes. Client specifies the port number on the remote, Server specified local port number.
