3.3.3 Time
Step1: enter into system configurationrecord configuration time; refer to Fig 3-11:

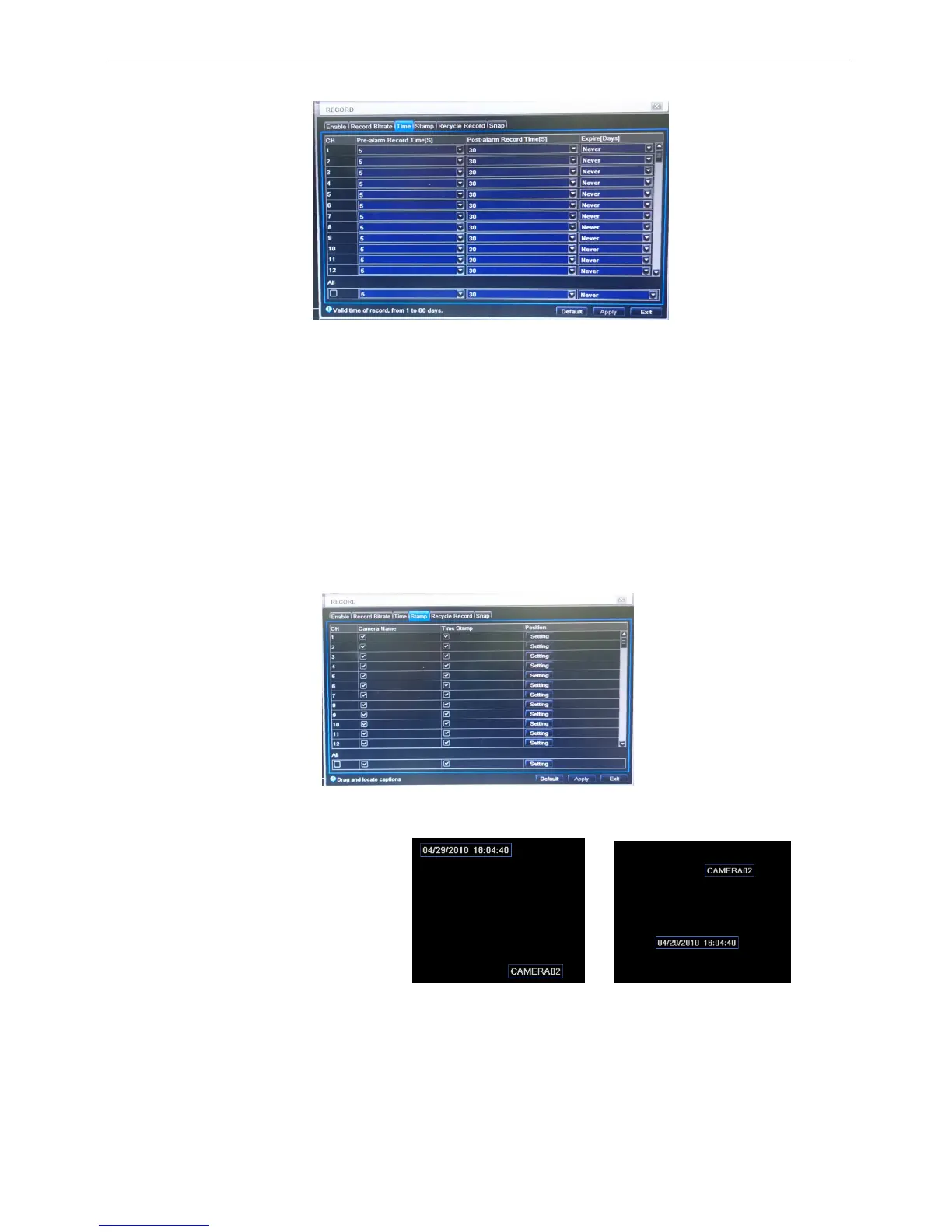

Fig. 3-11 record configuration-time
Pre-alarm record time: the record time before event happen i.e. record time before motion detection or
sensor alarm is triggered.
Post-alarm record: set the post recording time after the alarm is finished, five options: 10s、15s、20s、30s
and 60s.
Expire time: the hold time of saved records. If the set date is overdue, the record files will be deleted
automatically.
Step2: user can setup all channels with same parameters, tick off “all”, then to do relevant setup.
Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button
to exit current interface.
3.3.4 Stamp
Stamp：User can overlap the channel name and time stamp on video.
Step1: enter into system configuration record configuration stamp; refer to Fig 3-12:
Fig. 3-12 record configuration-stamp
Step2: tick off camera name, time stamp; click Set button, user can use cursor to drag the camera name and
time stamp in random positions, refer to below Figures:
Before drag after drag
Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup.
Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button
to exit current interface.
