Notice: The iHand30 hand-held controller must be used within the temperature
range from -20℃ to 55℃
5.2 Appearance
5.2.1 Front of the controller
The front of the iHand30 controller includes a touch screen, keyboard microphone and indictor light.

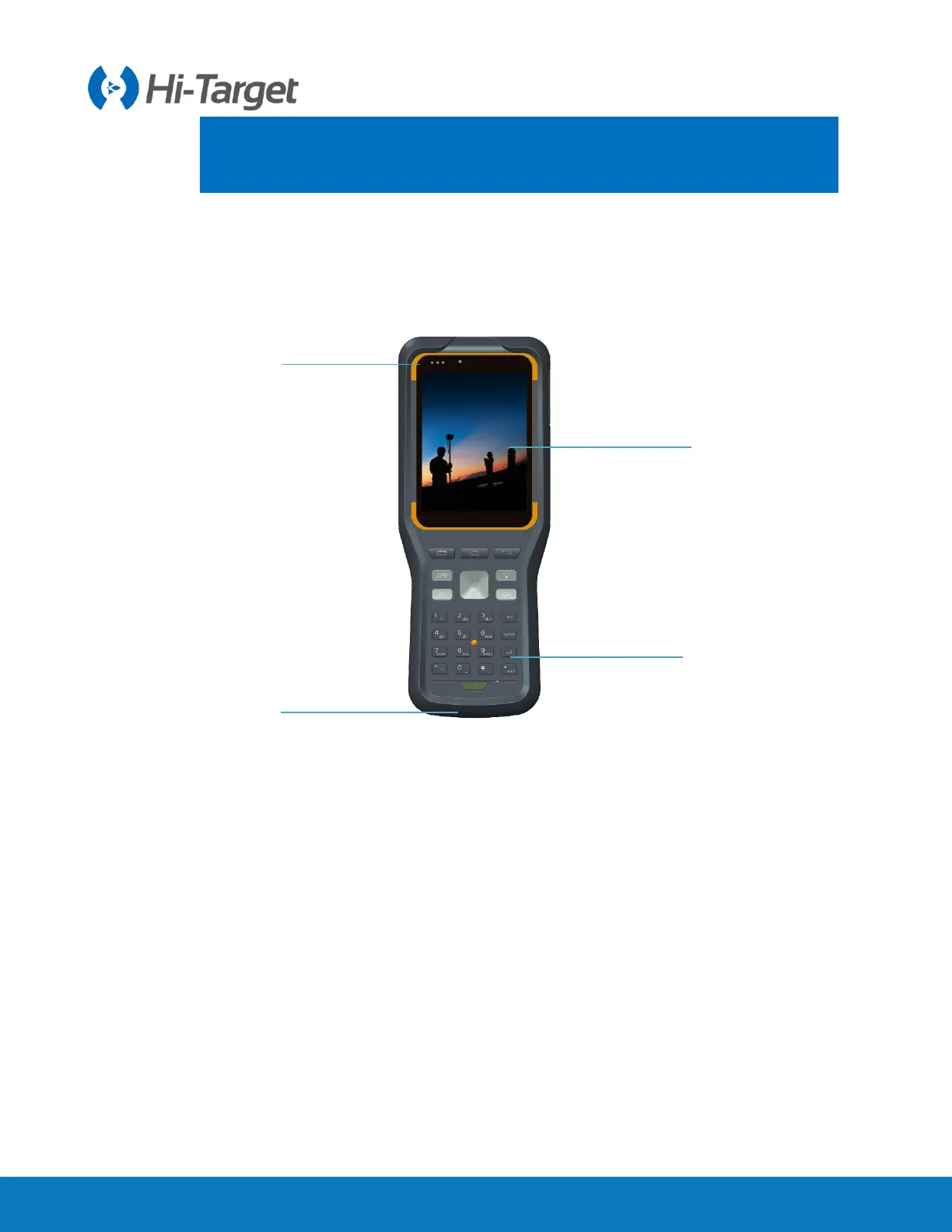

Figure 5-2-1 iHand30 controller
- Touch screen: multipoint capacitive touch screen with touch pen (open the touch pen function:
Settings - Accessibility - Handwriting pen), which supports Chinese and English input.
- Keyboard: direction control, switch between Chinese and English, data collection, volume control,
power on, power off and other functions.
- Microphone: the internal microphone can be used for field collection of voice messages.
- Indicator lights: from left to right: signal lamp, state lamp, power indicator.
5.2.2 Reverse side of the controller
There is a camera, battery cover, belt, NFC, trumpet, etc. on the reverse of the controller.
2
1
1- Indictor lights 2- Microphone 3- Touch screen 4- Keyboard
3
4
