VertX V1000 (CS) Quick Installation Guide

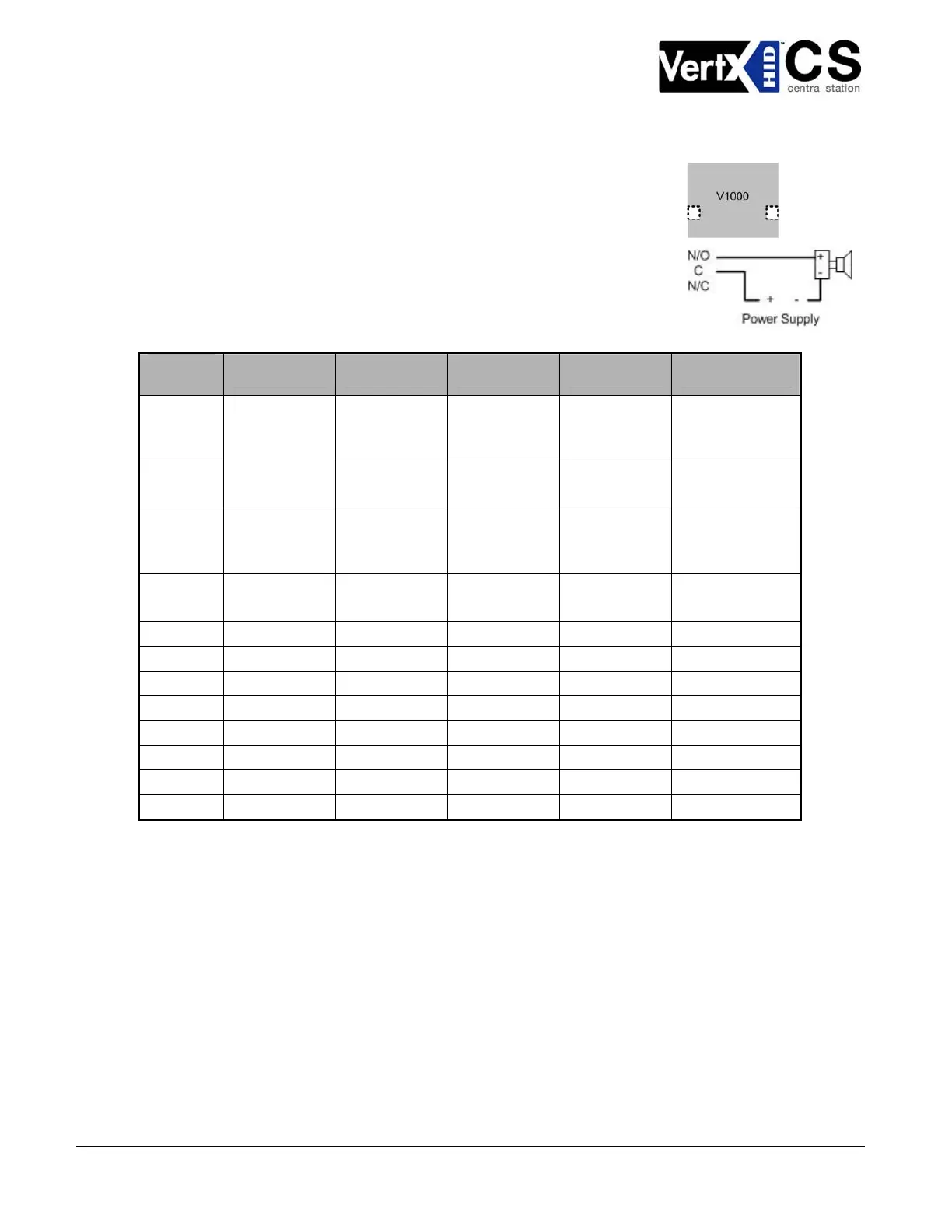

5. Output Connections – All Output connections are used for general
purpose controls. The following table shows where the various outputs
are located among the various VertX devices. Pin numbers shown use
the convention “NO/C/NC”. For example, Output 1, V2000: P3 Pin1 is
NO (Normally Open) and Pin 2 is C (Common) and Pin 3 is NC
(Normally Closed).
Note: Relays are dry contact rated for 2Amps @ 30VDC.
Output
V2000 V1000 V100 V200 V300
number
P3 Pins 1/2/3 P3 Pins 1/2/3
1 P14 Pins 3/4/5 P3 Pins 2/3/4 P1 Pins 1/2/3
Strike(lock)
Relay 1
Strike (lock)
Relay 1
P3 Pins 4/5/6
P3 Pins 4/5/6
2
P11 Pins 3/4/5
P6 Pins 3/2/1 P1 Pins 4/5/6
Aux Relay 1
Aux Relay 1
P6 Pins 6/5/4 P6 Pins 6/5/4
3 P1 Pins 7/8/9
Strike (lock)
Relay 2
Strike (lock)
Relay 2
P6 Pins 3/2/1
P6 Pins 3/2/1
4
P2 Pins 1/2/3
Aux Relay 2
Aux Relay 2
5 P2 Pins 4/5/6
6 P2 Pins 7/8/9
7 P4 Pins 9/8/7
8 P4 Pins 6/5/4
9 P4 Pins 3/2/1
10 P5 Pins 9/8/7
11 P5 Pins 6/5/4
12 P5 Pins 3/2/1

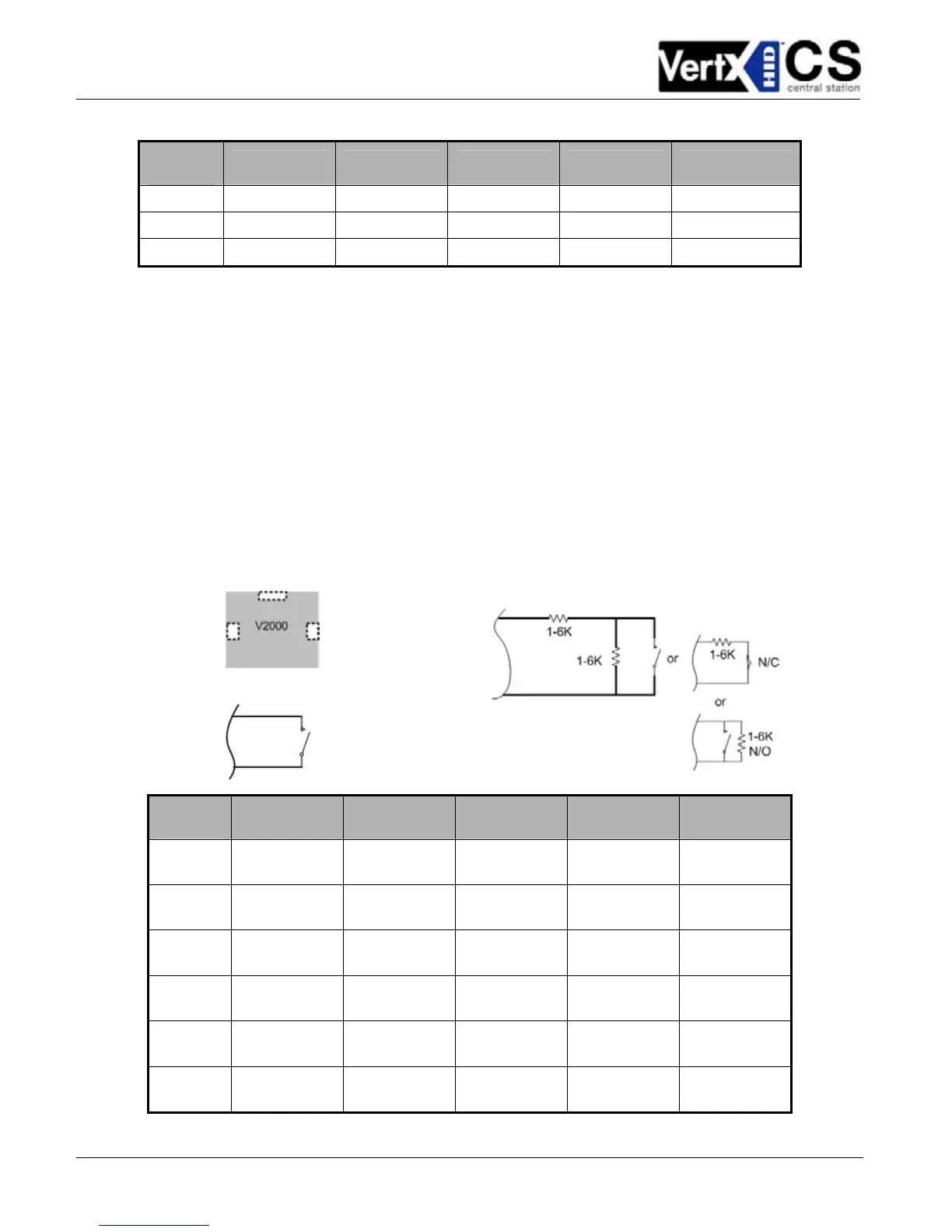

6. Input Connections – Input connections are analog inputs used for a combination of specific
functions such as Request-to-Exit (REX), Door monitor, etc. They can also be used as general
purpose monitoring. Connect one side of the switch or contact to the + (plus) lead and the other to
the – (minus) lead. The following table shows where the inputs are located among the different
VertX devices. Pin numbers shown on the cover use the convention +/–.
All V1000 input points are defaulted for NO switches and are unsupervised (no EOL resistors).
Any input can be configured as NO or NC, as well as unsupervised or supervised. They can be
configured for supervisory resistors of 1K – 6K Ohm. The setup of supervised inputs should be
done during configuration of the VertX devices via the central station automation software (host).
