Multi-spectrum Binocular User Manual
7
Alternatively, connect the device and PC to export files.
Steps
1. Lift the type-C interface cover.
2. Connect the device and power adapter with a type-C cable to charge the device.

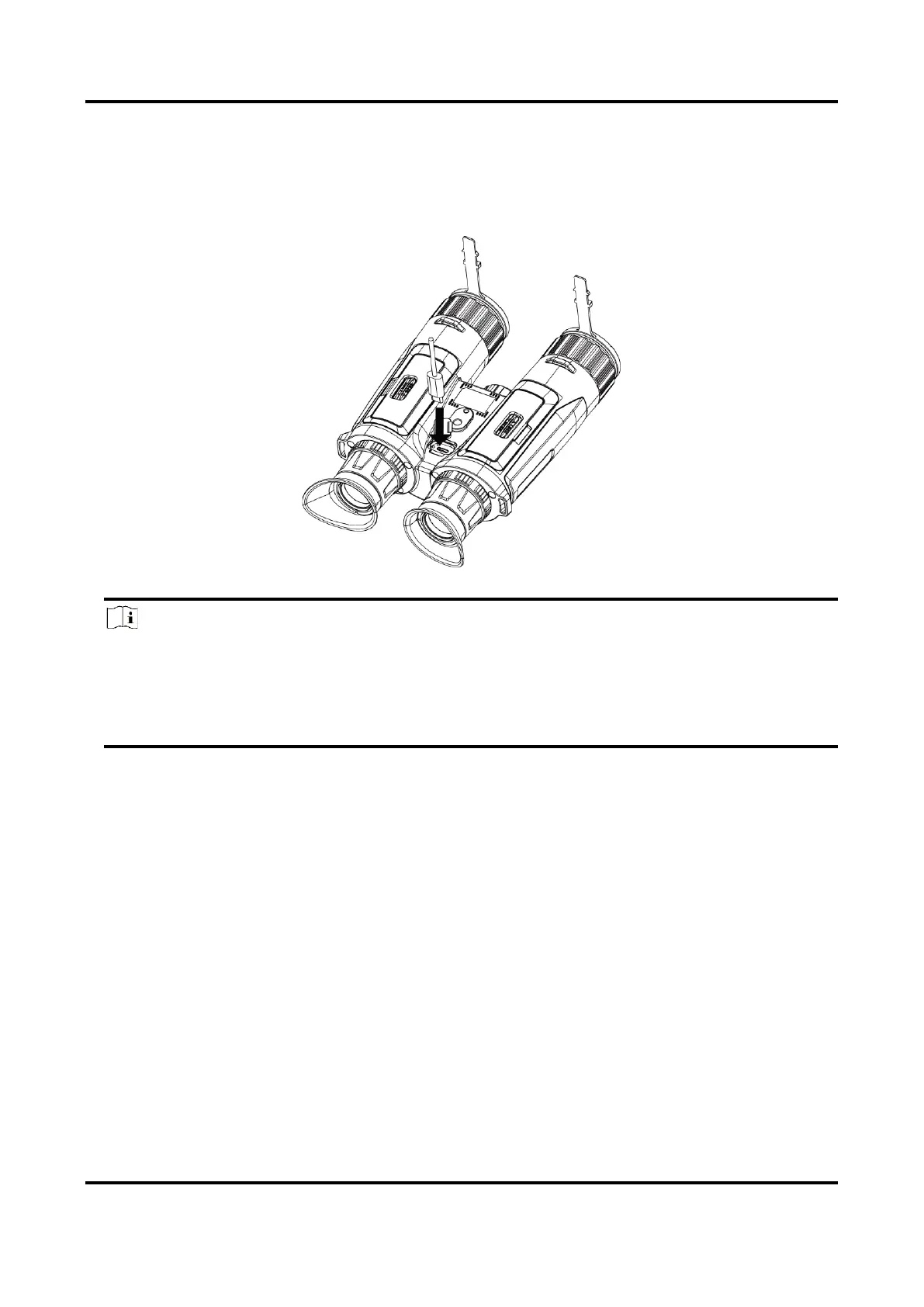

Figure 2-4 Cable Connection
Note
●
Please charge the device after the battery is installed in the battery compartment of
the device.
●
The charging temperature should be from 0 °C to 45 °C (32 °F to 113 °F).
●
You can use battery charger to charge the battery.
2.3 Mount Neck Strap
Steps
1. Thread one end of the neck strap through a neck strap attachment point.
To Next Page
