Hikmicro HQ35LN User Manual

Multi-spectrum Binocular User Manual
3

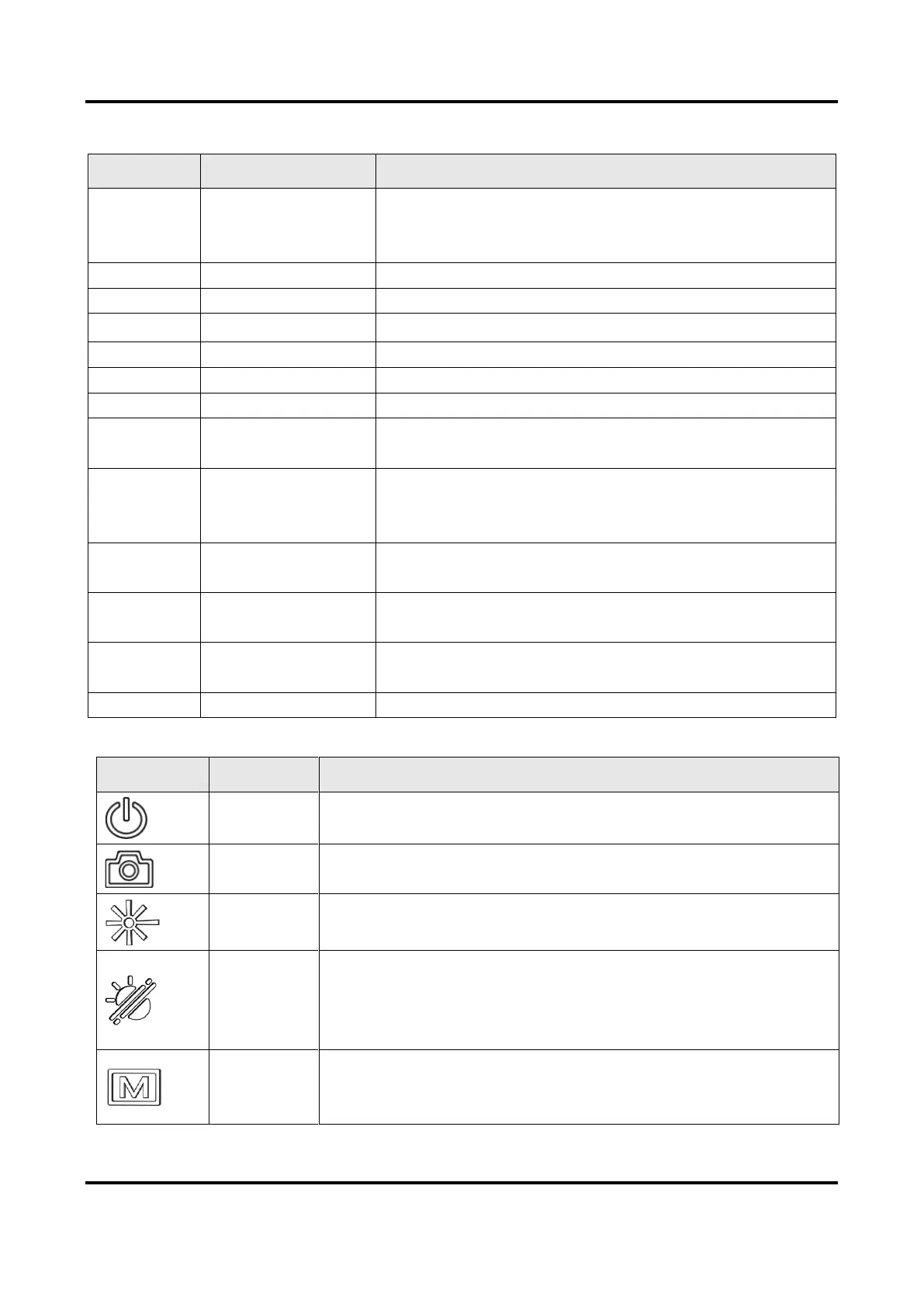

Table 1-1 Components
No.
Description
Function
1 & 7
Eyepiece
The piece placed closest to the eye to view the target.
Adjust the interpupillary distance by moving the
eyepieces farther or closer to each other.
2
Infrared Light
Helps to view target clearly in the dark environment.
3 & 8
Focus Ring
Adjusts focus to obtain clear targets.
4
Thermal Lens
For thermal imaging.
5
Buttons
To set functions and parameters.
6
Laser Rangefinder
Measures the distance to the target with laser.
9
Optical Lens
For optical imaging.
10
Type-C Interface
To connect the device to power supply or transmit
data with a type-C cable.
11
Charging Status
Indicator
●
Flashing Red & Green: Error occurred.
●
Solid Red: Charging.
●
Solid Green: Fully charged.
12 & 15
Battery
Compartment
For holding the battery.
13 & 17.
Neck Strap
Attachment Point
Mounts the neck strap.
14 & 18
Diopter
Adjustment Ring
Adjusts the dioptric setting.
16
Tripod Mount
Mounts the tripod.
Table 1-2 Button Description
Icon
Button
Function
Power
●
Press: Standby mode/Wake up device.
●
Hold: Power on/off.
Capture
●
Press: Capture snapshots.
●
Hold: Start/Stop recording videos.
Measure
●
Press: Turn on/off laser ranging.
●
Hold: Correct non-uniformity of display (FFC).
Mode
Non-Menu Mode:
●
Press: Switch palettes.
●
Hold: Switch day/night/auto mode.
Menu Mode: Press to move up.
Menu
Non-Menu Mode: Press to enter the menu.
Menu Mode:
●
Press: Confirm/Set parameters.

Hikmicro HQ35LN Specifications

General

Brand	Hikmicro
Model	HQ35LN
Category	Binoculars
Language	English
