User Manual of 9600/8600/7700/7600 Series NVR
166

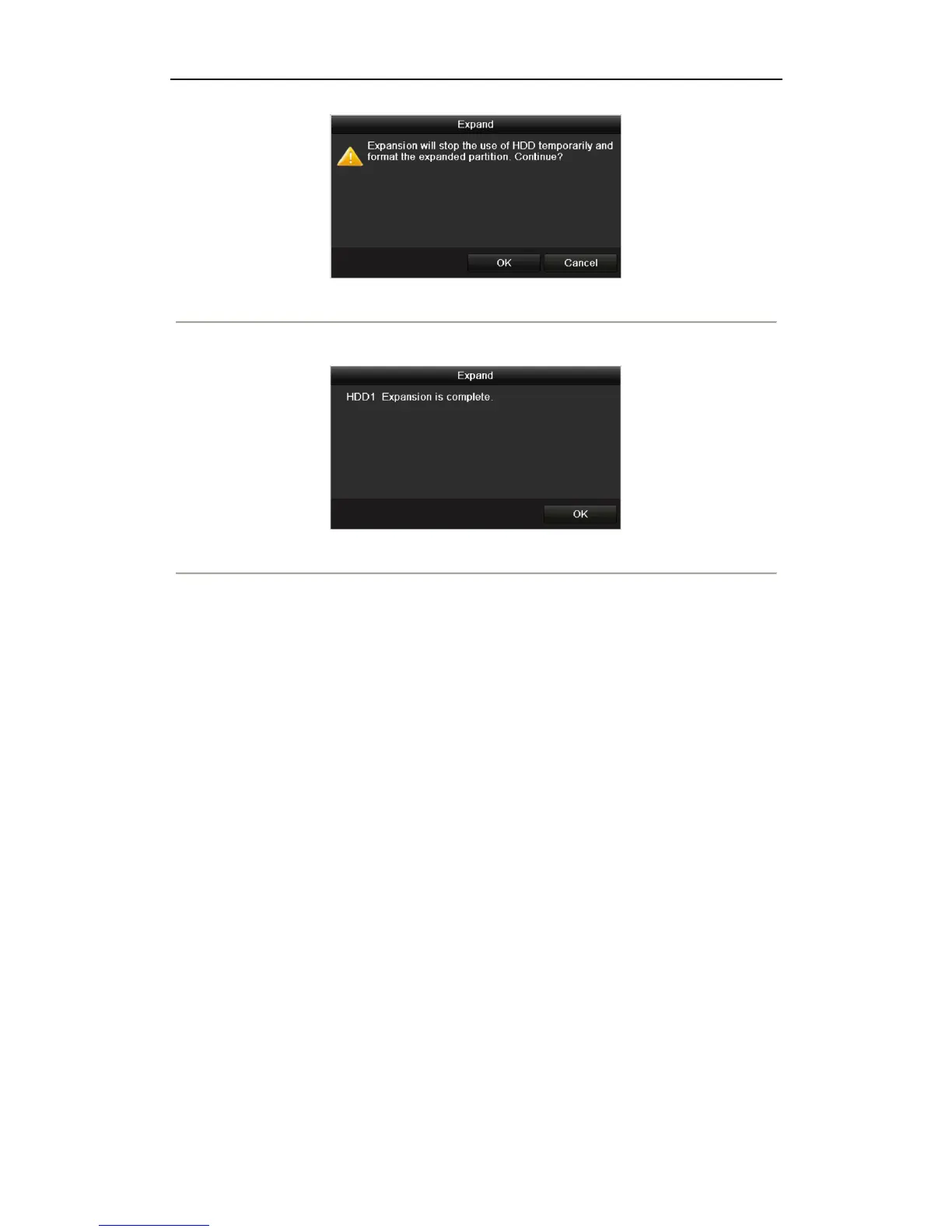

Figure 10. 35 Message Box for Expansion
9. After expanding finished, the following message box pops up. Click OK button to finish the settings.
Figure 10. 36 Message Box for Expanding Finished
Note: After RAID migration and capacity expansion, the expanded capacity for each virtual disk can be calculated
by the following formula: Expanded VD capacity＝(Original VD Capacity / Original Array Capacity) * Newly
Added Capacity of Hard Disk.
Example: The capacity of the original array is 2TB and two virtual disks exist under this array: VD1 (100GB) and
VD2 (200GB). If you migrate the array with a 1TB HDD, then after migration and expanding, the expanded VD1
capacity is 50GB, that is 50GB = (100GB/2TB)*1TB. And the expanded VD2 capacity is 100GB, that is 100GB =
(200GB/2TB)*1TB.
