HIKVISION D Series Quick Start Guide

Video Intercom Door Station·Quick Start Guide
5
2 Terminals and Interfaces
2.1 Terminals and Interfaces of DS-KD8102-V/
DS-KD8002-VM

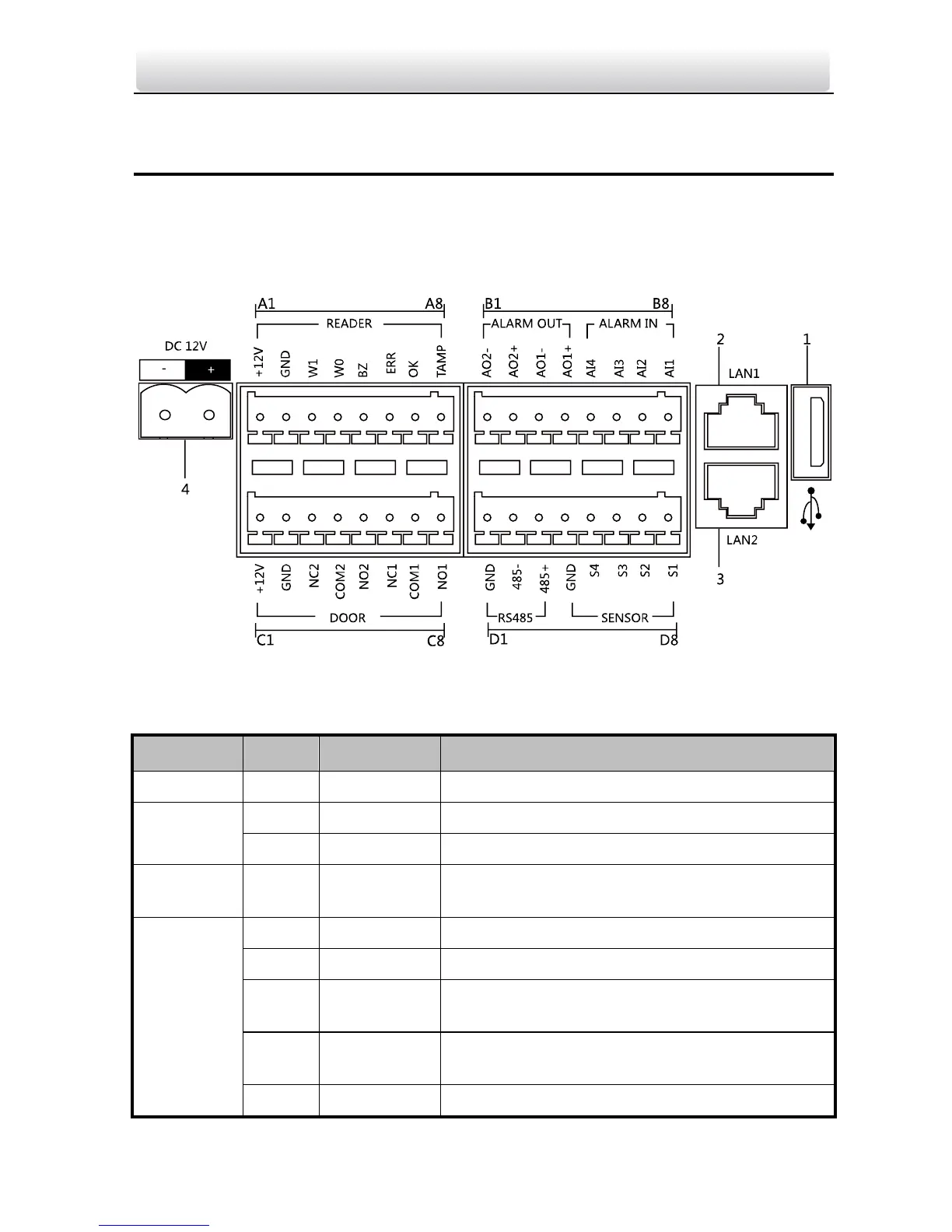

Figure 2-1 Terminals and Interfaces of DS-KD8102-V/DS-KD8002-VM
Table 2-1 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
USB
1
USB
USB Interface
LAN
2
LAN1
Network Interface
3
LAN2
Analog Interface
Power
Supply
4
DC 12V
DC 12V Power Supply Input
READER
A1
12V
Card Reader Power Supply Output
A2
GND
Grounding
A3
W1
Data Input Interface Wiegand Card Reader:
Data1
A4
W0
Data Input Interface Wiegand Card Reader:
Data0
A5
BZ
Card Reader Buzzer Output
