Terminal S2 is set as default for connecting door magnetic.
Door Magnetic Wiring for DS-KD6002-VM

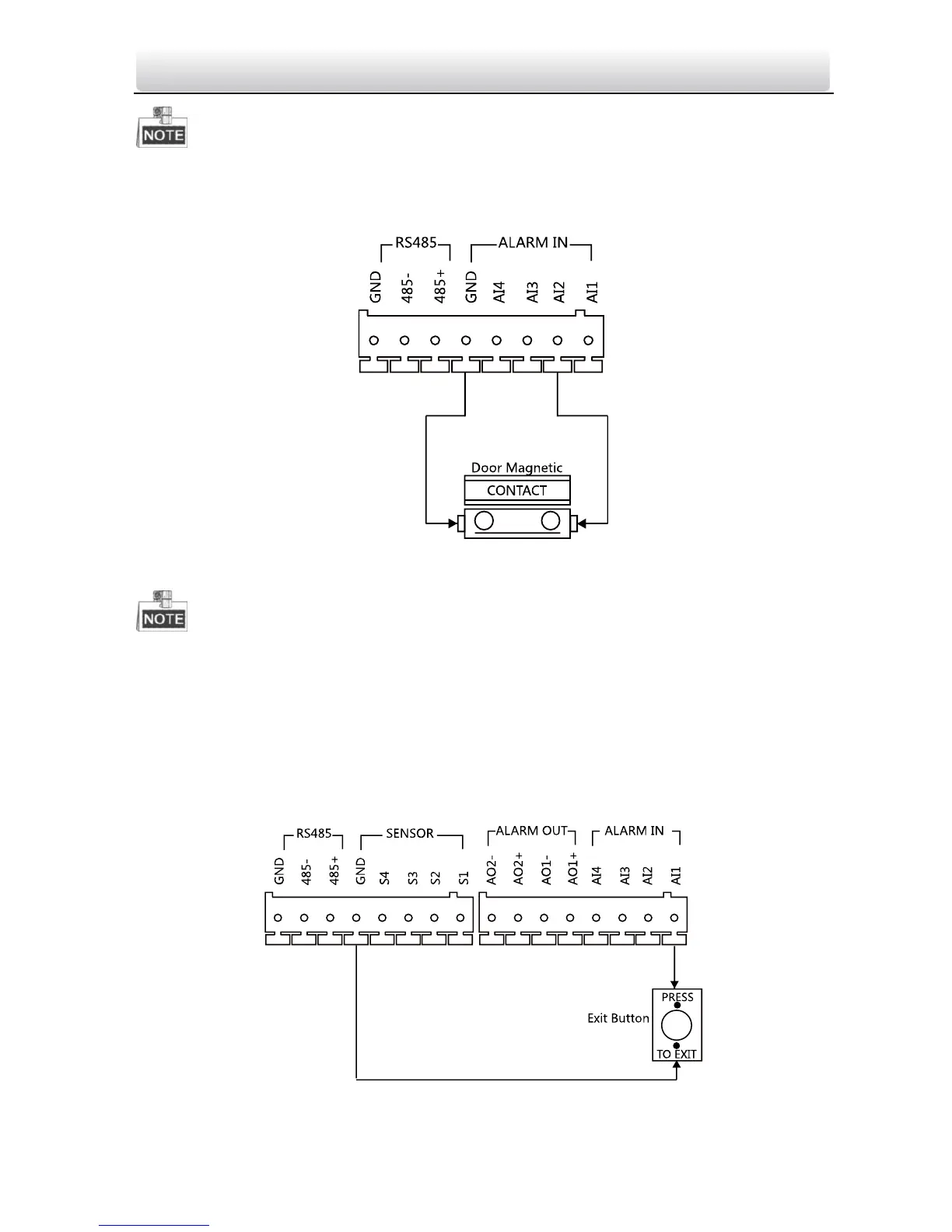

Figure 3-19 Door Magnetic Wiring for DS-KD6002-VM
To connect the door magnetic, it is required to set the output of terminal AI2 to be door
magnetic with Batch Configuration Tool or iVMS-4200.
3.4.3 Exit Button Wiring
Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM
For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of exit button wiring.
Figure 3-20 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (1)
