Video Intercom Door Station·Quick Start Guide
20
To connect the exit button, it is required to set the output of terminal AI1 to be exit
button with Batch Configuration Tool or iVMS-4200.

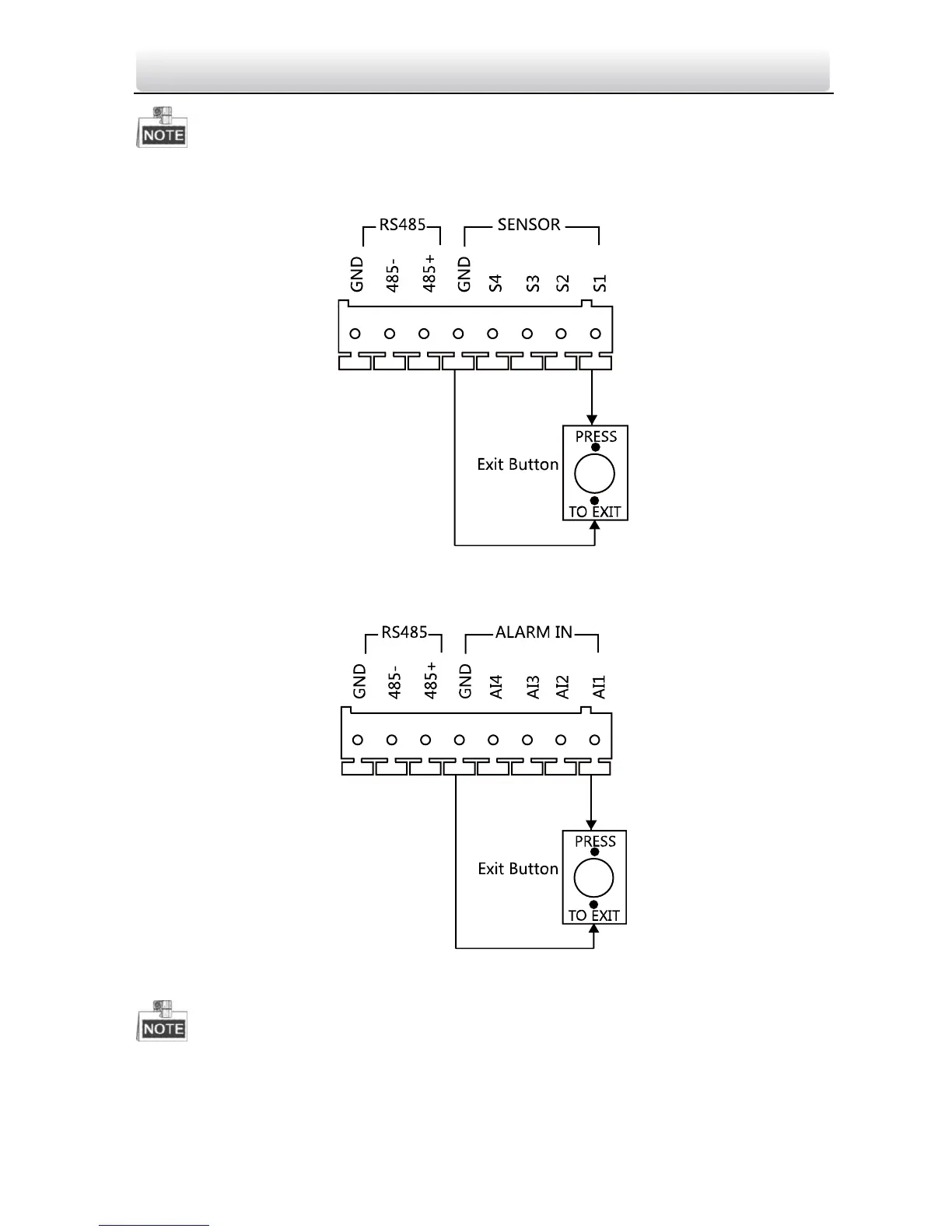

Figure 3-21 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Exit Button Wiring for DS-KD6002-VM
Figure 3-22 Exit Button Wiring for DS-KD6002-VM
Terminal S1 is set as default for connecting exit button.
