HIKVISION D Series Quick Start Guide

Video Intercom Door Station·Quick Start Guide
17

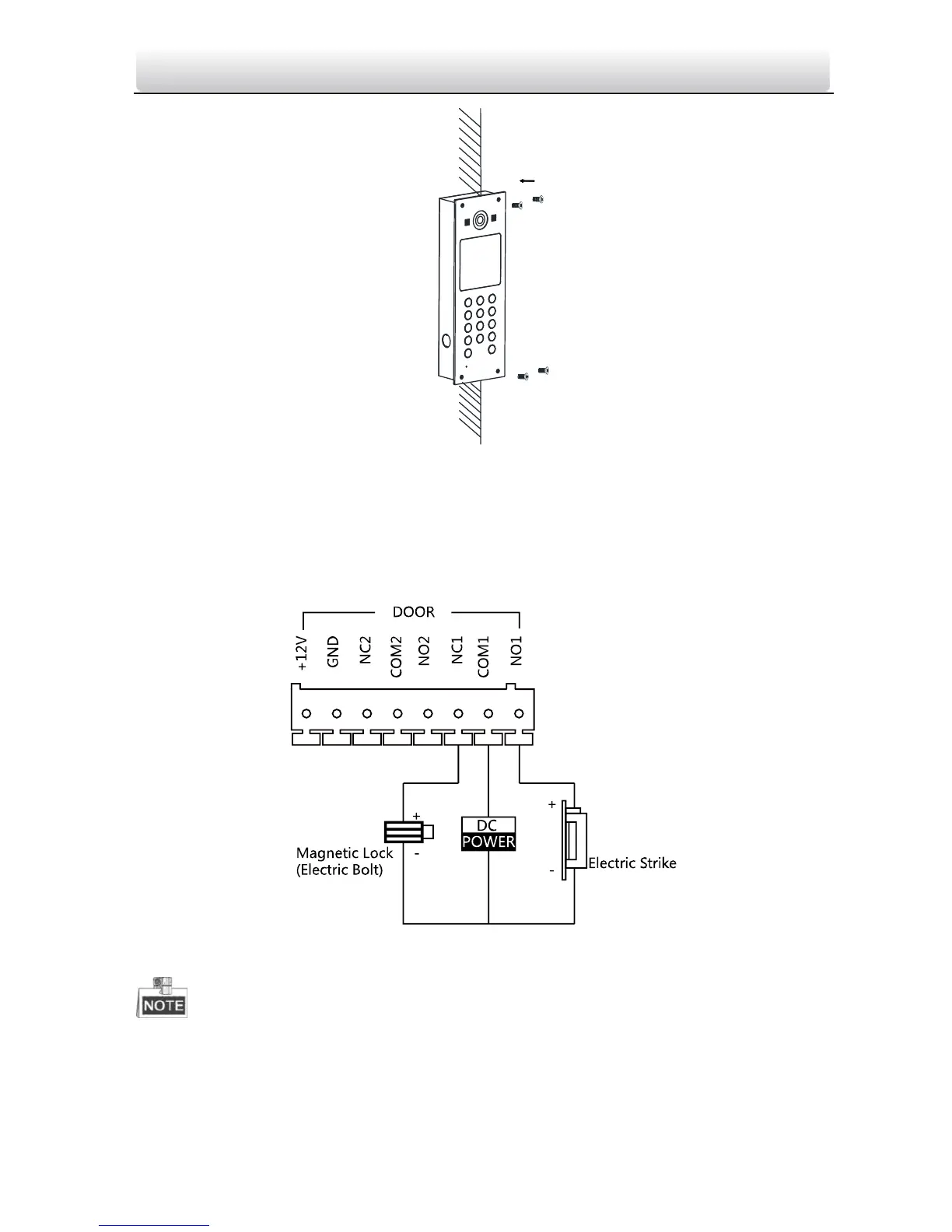

Figure 3-15 Tighten the Screws of Device
3.4 Wiring Description
3.4.1 Door Lock Wiring
Figure 3-16 Door Lock Wiring
 Terminal NO1/COM1 is set as default for accessing magnetic lock/electric bolt;
terminal NC1/COM1 is set as default for accessing electric strike.
