Video Intercom Door Station·Quick Start Guide
21
3.4.4 External Card Reader Wiring
 Please set the DIP switch first before connecting the card reader.
 If the DIP switch should be configured when the card reader is power-on, please
reboot the card reader after configuring the DIP switch.
 The DIP switch description is shown in the following table:
No.
Description
How to Configure
1-4
Set the RS-485 address
ON: 1
OFF: 0
6
Select Wiegand protocol
or RS-485 protocol
ON: Wiegand
OFF: RS-485
7
Set the Wiegand protocol
(It is invalid when setting
OFF in 6.)
ON: Wiegand 26
OFF: Wiegand 34

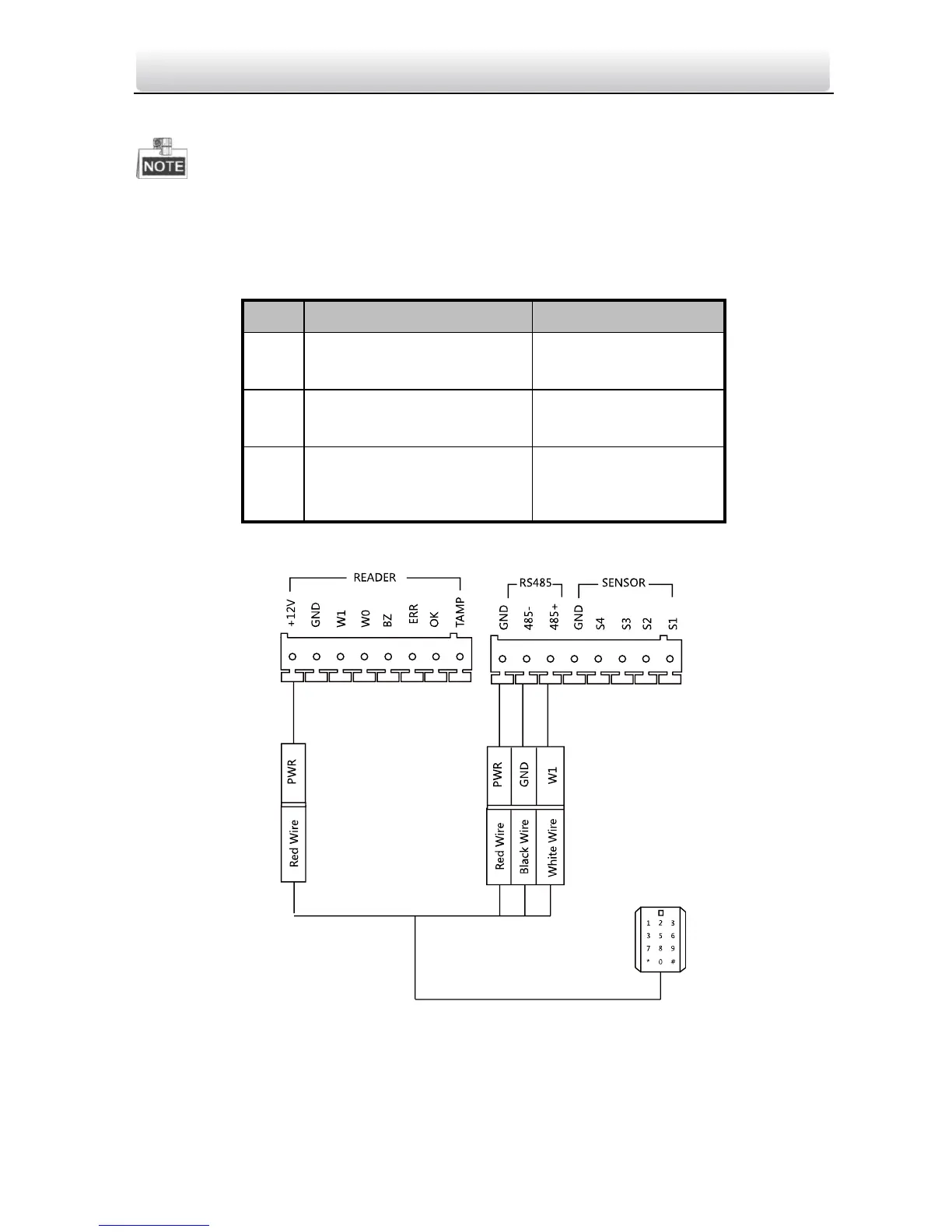

RS-485 Card Reader Wiring
Figure 3-23 RS-485 Card Reader Wiring
