3.2 Installation of DS-KD8002-VM
3.2.1 Gang Box for DS-KD8002-VM
407.5
135

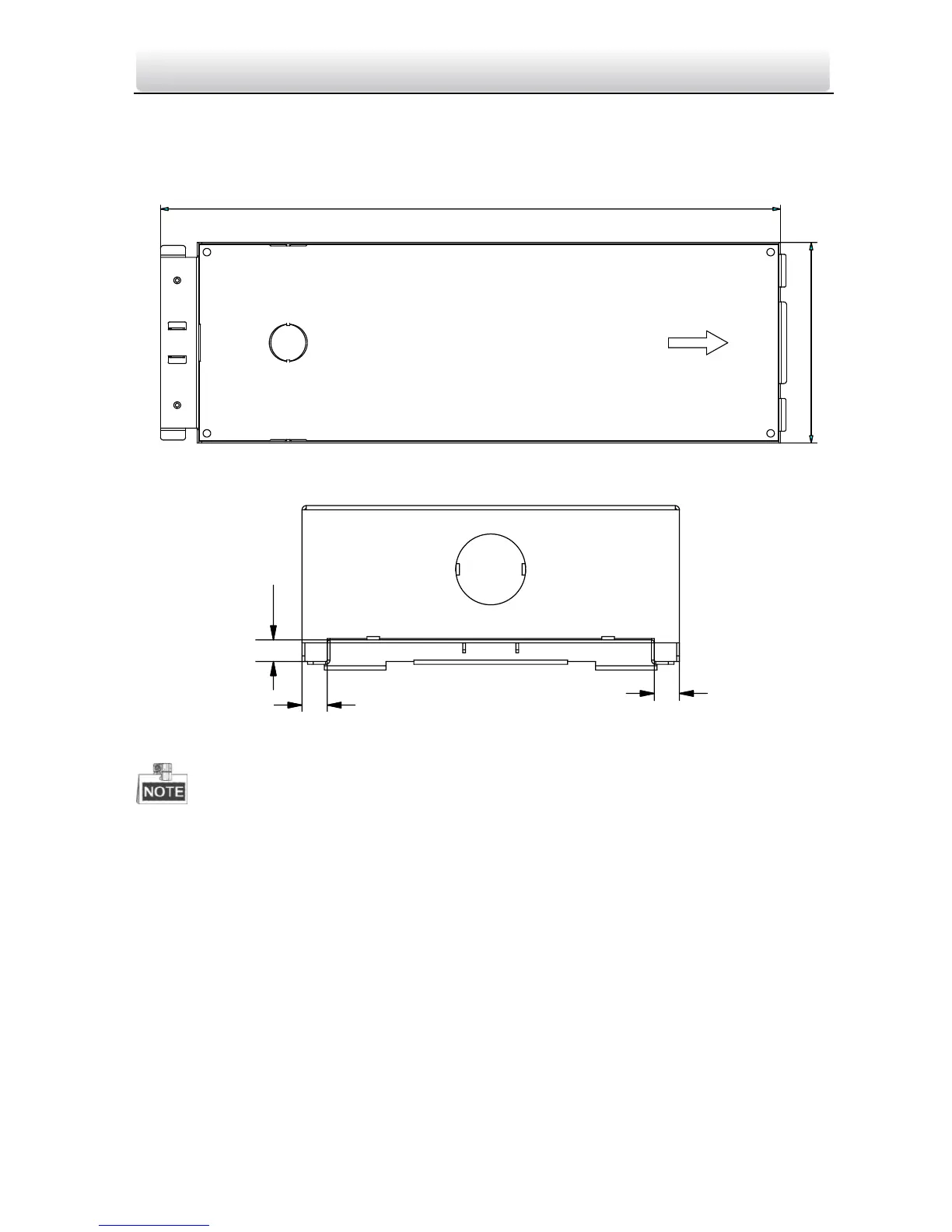

Figure 3-6 Front View
9
9
7.6
Figure 3-7 Overhead (Plan) View
 The dimension of gang box for model DS-KD8002-VM door station is: 407.5 mm × 135
mm × 55 mm.
 The dimensions above are for reference only. The actual size can be slightly larger
than the theoretical dimension.
3.2.2 Wall Mounting with Gang Box of DS-KD8002-VM
1. Chisel a hole in the wall for inserting the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of hole is 136 (length) × 408.5
(width) × 55.5 (depth) mm.
