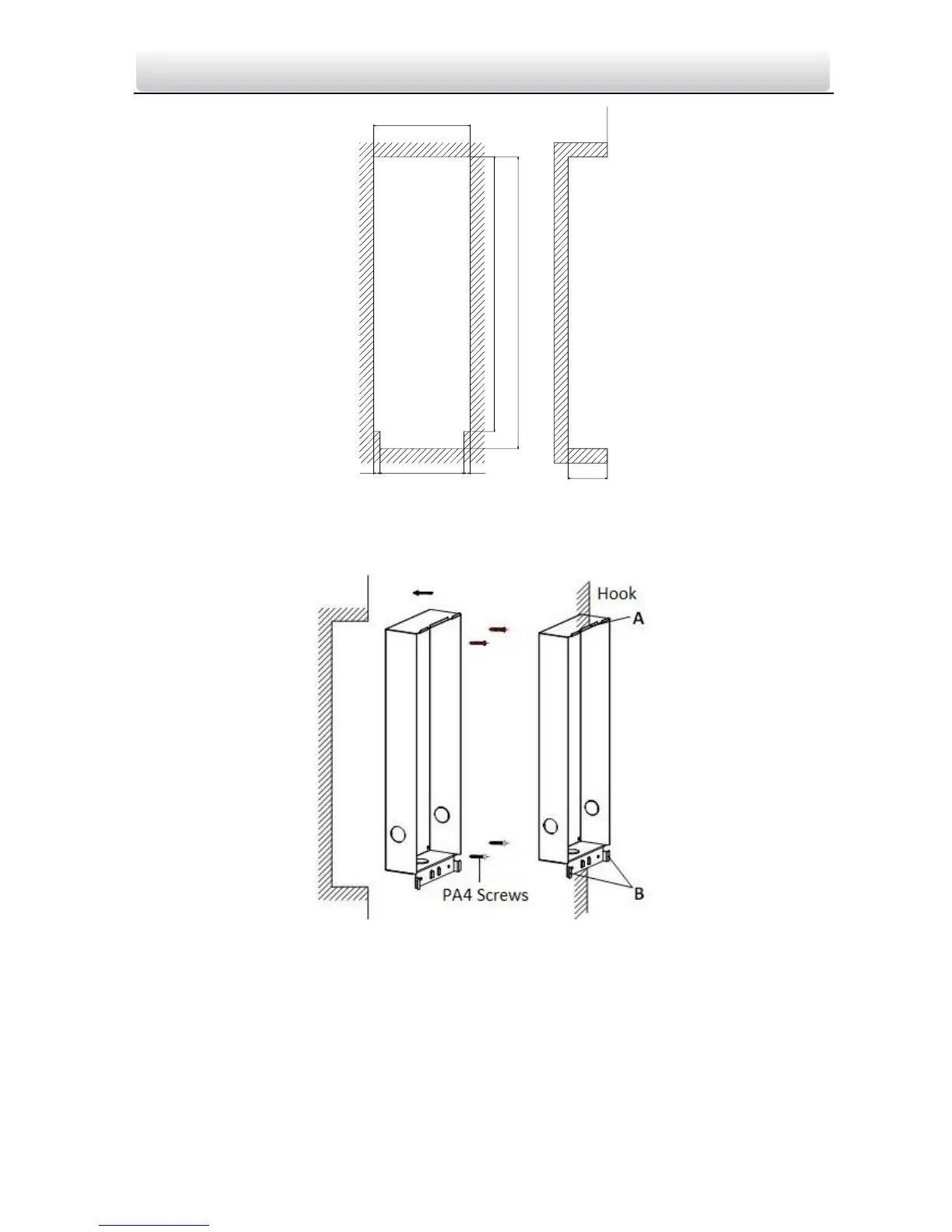

Figure 3-8 Dimensions of the Hole
2. Insert the gang box into the hole and fix it with 4 PA4 screws.
Figure 3-9 Insert the Gang Box into the Wall
3. Make sure the edges of the gang box align to the wall and the hook A and hook B of
the gang box hook onto the wall.
4. Route the cables of the door station through the cable hole.
5. Insert the door station into the gang box and then move the door station downward
to hook the lock catches on the rear panel onto the hook C of the gang box.
6. Fix the door station with 2 PM3 screws.
