Video Intercom Door Station·Quick Start Guide
22

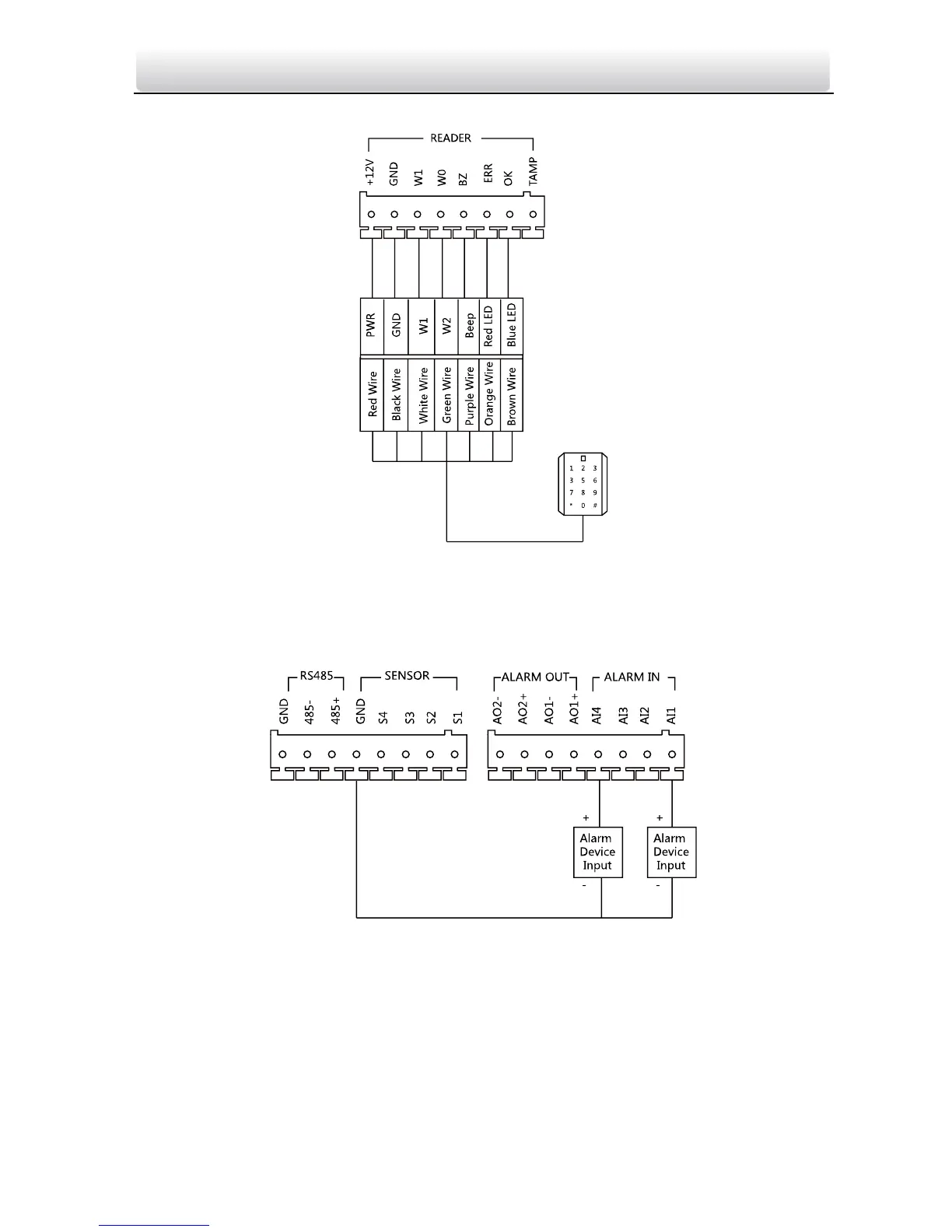

Wiegand Card Reader Wiring
Figure 3-24 External Card Reader Wiring
3.4.5 Alarm Device Input Wiring
Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM
Figure 3-25 Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM
