User Manual of the DS-1004K keyboard
17
The parameters include the protocol, baud rate, data bit, stop bit, and parity.
4.
When the LED screen shows COPYALL, you can choose YES or NO.
When you choose YES, the parameters you just set will be copied to other dome cameras connected.
5.
Press Enter button to confirm your settings.
6.
Turn the key to the OPERATE item to control the dome camera.
Dome Camera Control Operation
The keyboard mainly controls the PTZ function of the dome camera. The PTZ function of the dome camera is realized by the
compound operation of the joystick and the PTZ buttons.

To call the preset, switch to the OPERATE mode, press PTZ button to enter PTZ control mode and press the numeric
button and then press the preset button.
Note: Call preset No. 95 to open the menu of the dome camera.

To call patrol, switch to the OPERATE mode, press the numeric button and then press the patrol button;

To call pattern, switch to the OPERATE mode, press the numeric button and then press the pattern button.
To set preset, patrol and pattern for the dome camera, you turn the key to the PROGRAM mode

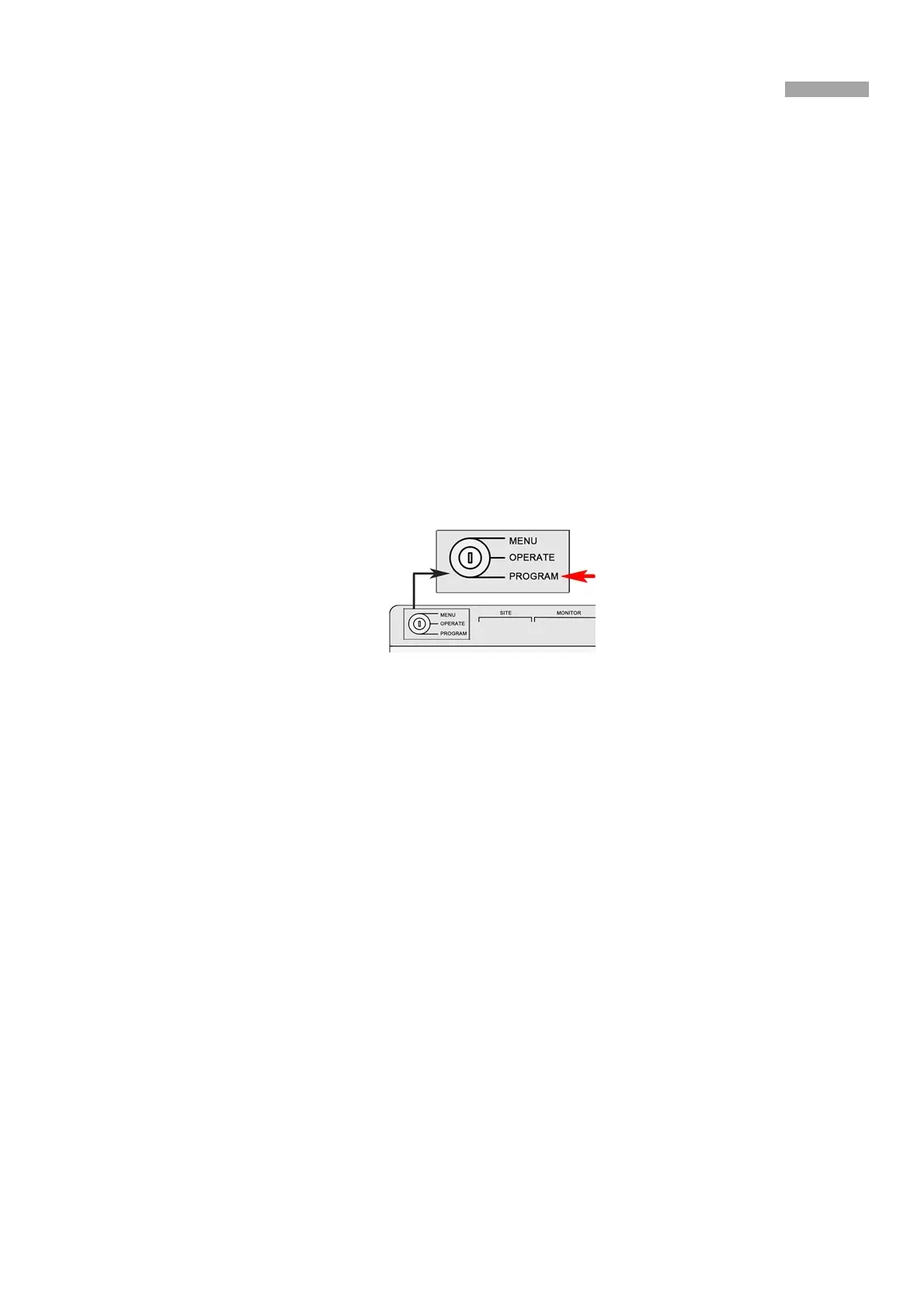

Figure 3-8 Turn the Key to PROGRAM
Setting the preset
Press the numeric button and then press the preset button.
And the LED screen returns PRESET DONE, indicating that the preset is set.
Setting the patrol:
Note: the patrol is a group of presets.
Steps:
1.
In the PROGRAM mode. Press the numeric button and press the PATROL button.
And then you can see the LED screen shows PATROL SET.
2.
Press numeric button and press Enter button to choose the preset for the patrol.
3.
Press the numeric button again and press Enter button again to set the patrol time.
4.
Press the numeric button and press Enter button to set the patrol speed.
5.
Press the PATROL button to finish the setting.
And the LED screen returns PATROL DONE, indicating that the patrol is set.
Setting the pattern:
Steps:
1.
Switch to the PROGRAM mode.
2. Press the numeric button and press the pattern button.
3.
Use the joystick and ZOOM+/- button to control the PTZ and record the PTZ movement.
4.
Press the PATTERN button again to set the pattern.

HIKVISION DS-1004KI Specifications

General

Numeric keypad	Yes
Keyboard layout	-
Pointing device	Trackball
Device interface	RS-485
Connectivity technology	Wired
Wrist rest	No
Product color	Black
Keyboard style	Straight
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	163 mm
Width	434 mm
Height	43 mm
Keyboard weight	1250 g
Keyboard dimensions (WxDxH)	434 x 163 x 43 mm
